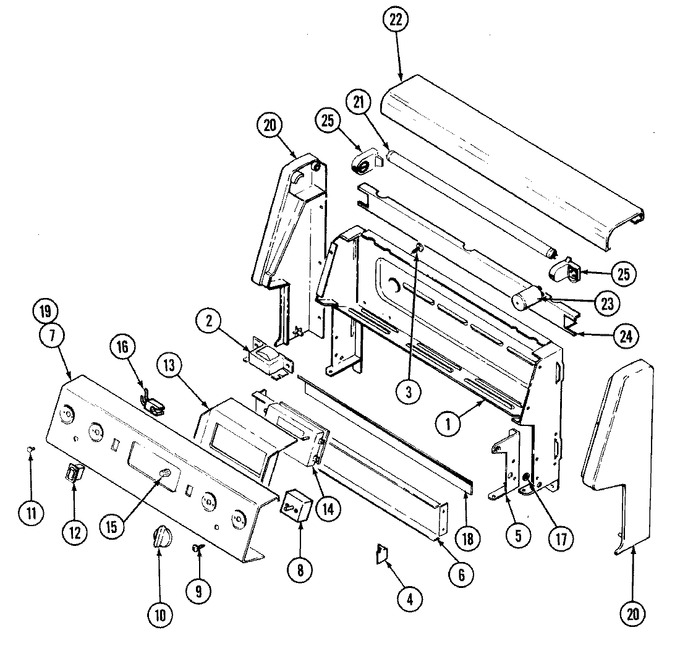

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F094-51 | Housing, Control Panel | 10 |
|
- | ||||
| 2 | 7412P007-60 | Ballast | 10 |
|
- | ||||
| 3 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 10 |
|
$ 6.98 | ||||
| 4 | 8010P083-60 | Spacer | 10 |
|
- | ||||
| 5 | 7408P030-60 | Receptacle, Snap-in (lt) | 10 |
|
- | ||||
| 5 | 7724P062-60 | Cover, Lamp Wire | 10 |
|
- | ||||
| 5 | 7408P029-60 | Receptacle, Light (rt) | 10 |
|
- | ||||
| 6 | 3802F088-51 | Brace, Control Panel | 10 |
|
- | ||||
| 7 | 7118P022-60 | Screw | 10 |
|
- | ||||
| 7 | 7703P556-60 | Panel, Control | 10 |
|
- | ||||
| 8 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 8 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 9 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 10 | 7737P037-60 | Knob, Valve (wht) | 10 |
|
- | ||||
| 11 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 12 |
|
$ 5.16 | ||||
| 11 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P010-60) | 10 |
|
$ 5.16 | ||||
| 12 | 74008717 | Switch, Rocker (wht) (Replaces: 7403P310-60) | 10 |
|
$ 72.68 | ||||
| 13 | 3801F276-45 | Bracket, Clock | 10 |
|
- | ||||
| 14 | 7601P195-60CP | Clock (Replaces: 7601P195-60) | 10 |
|
- | ||||
| 14 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 15 | WP7711P492-60 | Knob, Clock (white) (Replaces: 7711P476-60) | 10 |
|
$ 12.13 | ||||
| 16 | WP74004153 | Light, Indicator (Replaces: 7407P077-60) | 10 |
|
Immediately | $ 8.02 | |||
| 16 | WP74004153 | Light, Indicator (Replaces: 7407P101-60) | 12 |
|
Immediately | $ 8.02 | |||
| 17 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 18 | 3604F201-80 | Shield, Sight | 10 |
|
- | ||||
| 19 | 3807F406-71 | Holder, Lamp (wht) | 10 |
|
- | ||||
| 20 | 7726P066-60 | End Cap, Control Panel | 10 |
|
- | ||||
| 20 | 7726P065-60 | End Cap, Control Panel | 10 |
|
- | ||||
| 21 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 10 |
|
Immediately | $ 121.45 | |||
| 22 | 7724P060-60 | Cover, Lamp | 10 |
|
- | ||||
| 23 | 5170D152-60 | Harness, Control Panel | 10 |
|
- | ||||
| 23 | 7415P001-60 | Starter | 10 |
|
- | ||||
| 23 | 5175D071-60 | Harness, Coil Top | 10 |
|
- |
