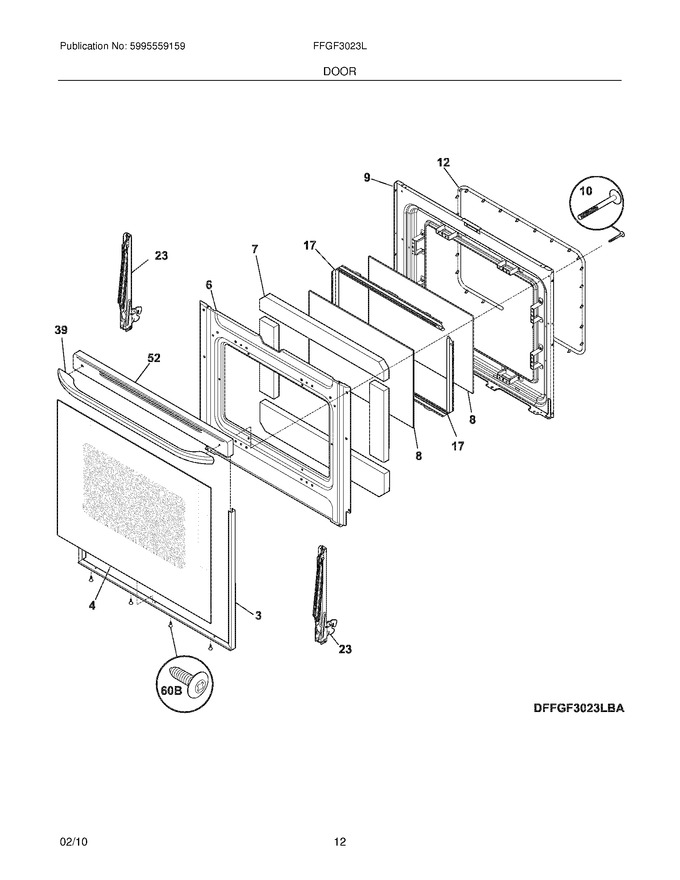

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935326		Trim Kit-door,3 Sided ,white ,w/tape			Immediately	$ 81.50
4	316558905		Glass,oven Door ,white ,outer   (Replaces: 316558900)			Immediately	$ 134.99
6	316402306		Shield,wool		Appelez-nous	-
7	316403900		Insulation,oven Door			Immediately	$ 72.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423807		Liner-oven Door				$ 171.40
10	316433300		Screw,10-14 X 2.125`` ,handle Mtg.			Immediately	$ 27.50
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	316575902		Hinge,oven Door				$ 102.38
39	316545301		Handle,door/drawer ,white			Immediately	$ 130.85
52	316575500		Cap,door Trim ,white			Immediately	$ 122.09
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
