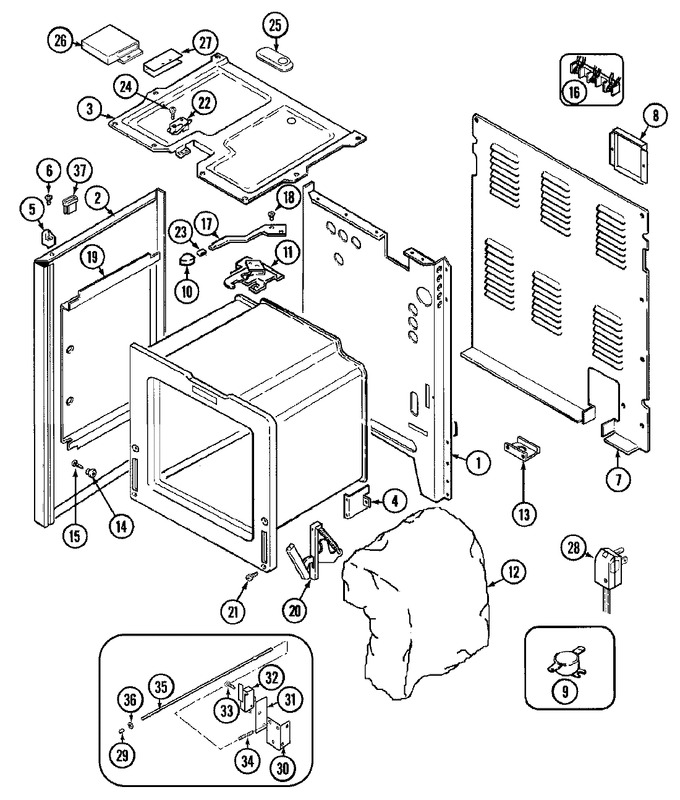

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F189-80 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F099-71 | Panel, Side (wht) | 10 |
|
- | ||||
| 2 | 7003P067-60 | Insulator, Damper Sound | 15 |
|
- | ||||
| 2 | 8270P090-60 | Tape, Foil (3`` Wide) | 10 |
|
- | ||||
| 3 | 4011F219-19 | Box, Burner | 10 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 7 | 4005F348-51 | Cover, Main Back Wire | 10 |
|
- | ||||
| 8 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 9 | 7403P160-60 | Switch, Hi-limit | 10 |
|
- | ||||
| 10 | 7701P133-60 | Handle, Door Latch (wht) | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 4804F028-60 | Insulation, Latch Assy. | 10 |
|
- | ||||
| 11 | 8002P025-60 | Latch Assy. | 10 |
|
- | ||||
| 12 | 4804F030-60 | Insulation, Back & Bottom | 10 |
|
- | ||||
| 12 | 4804F036-60 | Insulation, Wrap | 10 |
|
- | ||||
| 13 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 14 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 15 | W11772394 | Screw (Replaces: 7101P334-60) | 10 |
|
Immediately | $ 10.94 | |||
| 16 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 17 | 8009P024-60 | Lever, Door Latch | 10 |
|
- | ||||
| 17 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 18 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 10 |
|
$ 4.29 | ||||
| 19 | 3804F103-51 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 20 | 7106P049-60 | Hinge, Door | 10 |
|
- | ||||
| 21 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 10 |
|
$ 4.29 | ||||
| 22 | 74001162 | Switch, Double Lock | 10 |
|
- | ||||
| 23 | 7112P003-60 | Clip, Latch Handle | 10 |
|
- | ||||
| 24 | 7101P130-60 | Screw, Latch Switch | 10 |
|
- | ||||
| 25 | 4005F432-45 | Cover, Vent | 10 |
|
- | ||||
| 25 | 7101P103-60 | Screw | 10 |
|
- | ||||
| 26 | 4005F451-80 | Cover, Latch Assy | 10 |
|
- | ||||
| 27 | 74001134 | Insulator, Latch Switch | 10 |
|
- | ||||
| 28 | 7402P050-60 | Cord, Power | 10 |
|
- | ||||
| 29 | 8003P012-60 | Bumper | 10 |
|
- | ||||
| 30 | 3801F316-51 | Bracket, Light Switch | 10 |
|
- | ||||
| 30 | 3801F354-51 | Bracket, Light Switch | 12 |
|
- | ||||
| 31 | 7003P047-60 | Insulator, Switch | 10 |
|
- | ||||
| 31 | 7003P062-60 | Insulator, Switch | 12 |
|
- | ||||
| 32 | 12001053 | Kit, Light Switch Actuator | 12 |
|
- | ||||
| 32 | 7403P281-60 | Switch, Micro | 10 |
|
- | ||||
| 33 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 34 | 7803P067-60 | Spring | 10 |
|
- | ||||
| 35 | 7809P022-60 | Rod, Light Switch | 12 |
|
- | ||||
| 35 | 7809P017-60 | Rod, Light Switch | 10 |
|
- | ||||
| 36 | 7109P020-60 | Washer | 10 |
|
- | ||||
| 37 | 8007P023-60 | Bushing, Prop | 10 |
|
- |
