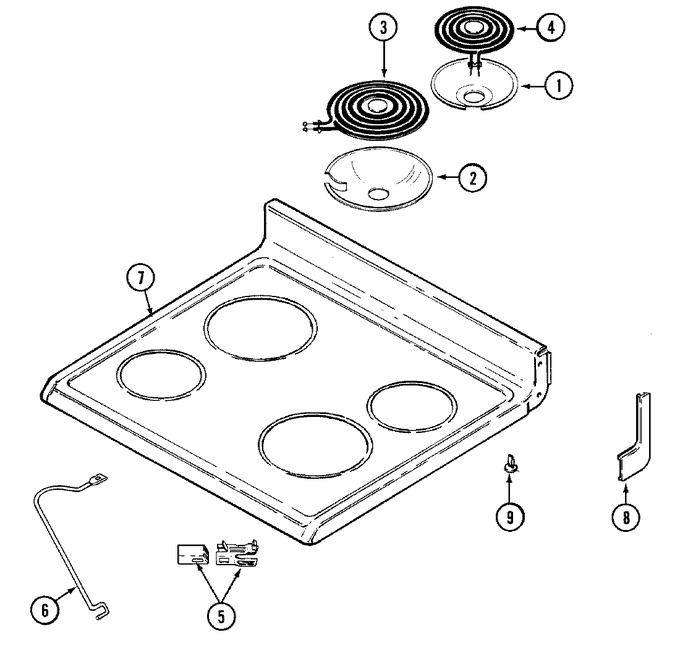

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer (ser. Pre. 11)


04 - Oven/base


05 - Top Assembly


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10291024		Bowl, Drip (6`` W/hole-gry)   (Replaces: 74001520)	10		Immediately	$ 49.90
1	W10291024		Bowl, Drip (6`` Gry)   (Replaces: 74001519)	10		Immediately	$ 49.90
1	W10291024		Bowl, Drip (6`` Gry-w/hole)   (Replaces: 74003439)	30		Immediately	$ 49.90
1	W10291024		Bowl, Drip (6`` Gry-solid)   (Replaces: 74003440)	30		Immediately	$ 49.90
2	W10291024		Bowl, Drip (8`` Gry)   (Replaces: 74001518)	10		Immediately	$ 49.90
2	W10291024		Bowl, Drip (8`` Gry-solid)   (Replaces: 74003441)	30		Immediately	$ 49.90
3	WP12001560		Kit, Element (8`` Blk. Med.)   (Replaces: 12001230)	36			$ 172.17
3	WP12001560		Element (8``)   (Replaces: 7406P080-60)	10			$ 172.17
3	74001781		Element (8``) (2600watt) (blk)	13	Appelez-nous	-
4	WPW10259868		Element (6``)   (Replaces: 7406P081-60)	10		Immediately	$ 112.28
4	74001780		Element (6``) (1500watt) (blk)	13	Appelez-nous	-
4	WPW10259868		Kit, Element (6`` Blk. Med.)   (Replaces: 12001231)	36		Immediately	$ 112.28
5	12001676		Kit, Receptacle   (Replaces: 1430306K)	10		Immediately	$ 28.45
6	74001170		Support, Top	10	Appelez-nous	-
6	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
6	74001256		Bushing, Prop Support	10	Appelez-nous	-
7	2002W103-81		Top, Main (wht)	10	Appelez-nous	-
8	7746P033-60		End Cap, Top (lt-wht)	10	Appelez-nous	-
8	7746P032-60		End Cap, Top (rt-wht)	10	Appelez-nous	-
9	8016P015-60		Glide	10			$ 5.65

    View Diagram in Separate Window       Print Part List
