SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

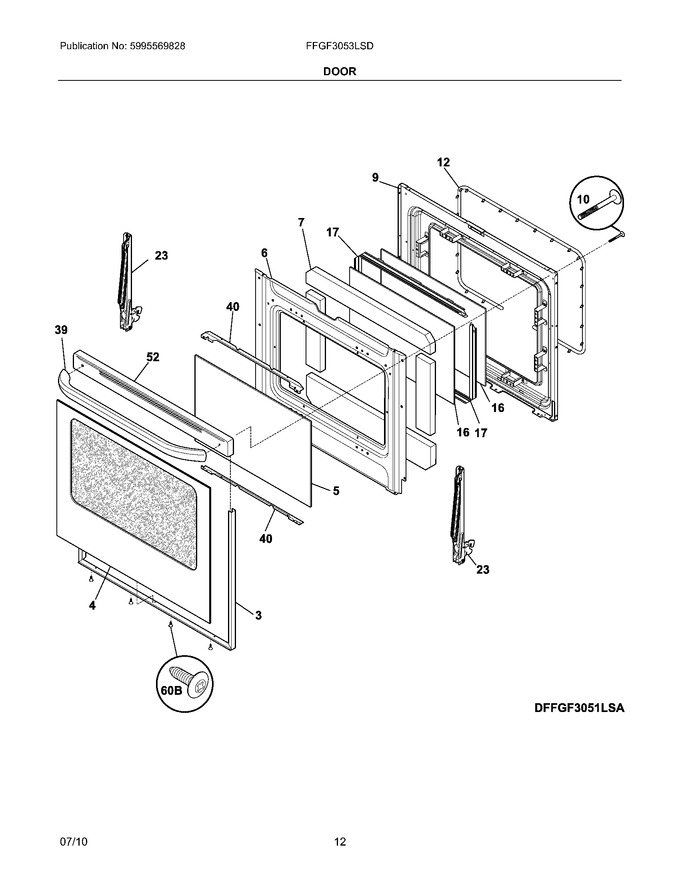

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935324		Trim Kit-door,3 Sided ,black ,w/tape				$ 80.80
4	316453033		Glass Assembly,oven Door ,w/tape ,outer				$ 249.48
5	316446401		Glass,oven Door ,airwash   (Replaces: 316446400)			Immediately	$ 125.13
6	316402316		Shield,wool   (Replaces: 316402310)			Immediately	$ 88.72
7	316403900		Insulation,oven Door			Immediately	$ 72.30
9	316423807		Liner-oven Door				$ 171.40
10	316433303		Screw,handle Mtg ,10-24 X 2.188 ,(2)   (Replaces: 316513300)			Immediately	$ 31.17
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
16	316117501		Glass,oven Door ,inner				$ 148.16
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	316575909		Hinge,oven Door   (Replaces: 316575904)			Immediately	$ 98.60
39	316558201		Handle,door ,stainless   (Replaces: 316558200)				$ 174.23
40	316446301		Bracket,glass ,airwash ,(2)				$ 59.96
52	316575501		Cap,door Trim ,black				$ 110.73
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
