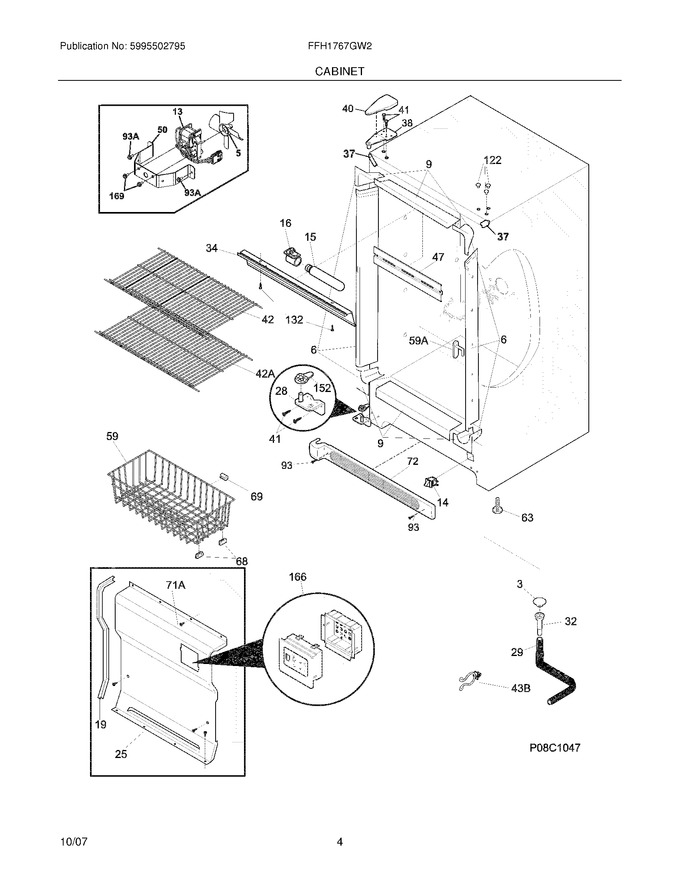

05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 6 | 297200600 | Breaker Kit W/corners,no Lock Slot |
|
$ 52.36 | |||||
| 9 | 297200100 | Breaker Kit W/corners,32`` ,top And Bottom |
|
$ 59.28 | |||||
| 13 | 297309000 | Motor,fan ,115 V (Replaces: 216934100) |
|
Immediately | $ 55.32 | ||||
| 14 | 216822900 | Switch,light/lamp ,ramp (Replaces: 216998000) |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| 19 | 216204900 | Gasket, Evap Cover |
|
$ 51.45 | |||||
| 25 | 297098802 | Cover-evaporator |
|
- | |||||
| 28 | 297179301 | Hinge,bracket, Lower ,lh |
|
$ 42.06 | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216816223 | Shield-light |
|
- | |||||
| 37 | 242161201 | Trim-cabinet Corner,white ,(2) (Replaces: 240337608) |
|
Immediately | $ 2.93 | ||||
| 38 | 297283803 | Hinge-upper (Replaces: 297164300) |
|
Immediately | $ 19.52 | ||||
| 40 | 297164400 | Cover-hinge |
|
$ 12.65 | |||||
| 41 | 240578902 | Screw-hinge Mtg,hex Head ,1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 42 | 216458400 | Shelf,14.50x27.88 ,(3) |
|
- | |||||
| 47 | 297192903 | Plate,baffle ,snap Fit (Replaces: 216661600) |
|
Immediately | $ 25.31 | ||||
| 50 | 216394050 | Bracket,fan Motor Mount |
|
$ 22.75 | |||||
| 59 | 216211700 | Basket |
|
- | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 68 | 08009560 | Glide Basket (4) |
|
$ 35.25 | |||||
| 69 | 5305878546 | Bumper-basket,(4) |
|
$ 7.23 | |||||
| 72 | 297036907 | Grille/kickplate,32`` ,white (Replaces: 297036900) |
|
$ 39.29 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 122 | 240494001 | Plug,white (Replaces: 297095300) |
|
Immediately | $ 18.20 | ||||
| 132 | 5304460601 | Screw,6-20ab X 3/8 |
|
- | |||||
| 152 | 216974600 | Bearing,hinge Closer |
|
$ 16.36 | |||||
| 169 | 216912401 | Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2) |
|
$ 12.76 | |||||
| 42A | 216458200 | Shelf,12.50x27.88 ,white |
|
- | |||||
| 43B | 297315800 | Clip (Replaces: 297048400) |
|
$ 10.13 | |||||
| 59A | 216486500 | Stop-basket,(2) |
|
$ 20.58 | |||||
| 71A | 297146800 | Screw,8-18ab X 0.470 ,evap Panel |
|
- | |||||
| 93A | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 13.01 | |||||
| F166 | 297282800 | Electronic Cold Control,assy (Replaces: 297142400) |
|
$ 218.30 | |||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 16.63 | |||||
| NI | 216910403 | Energy Guide |
|
- | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
