SELECT A DIAGRAM

01 - Cover


03 - Door

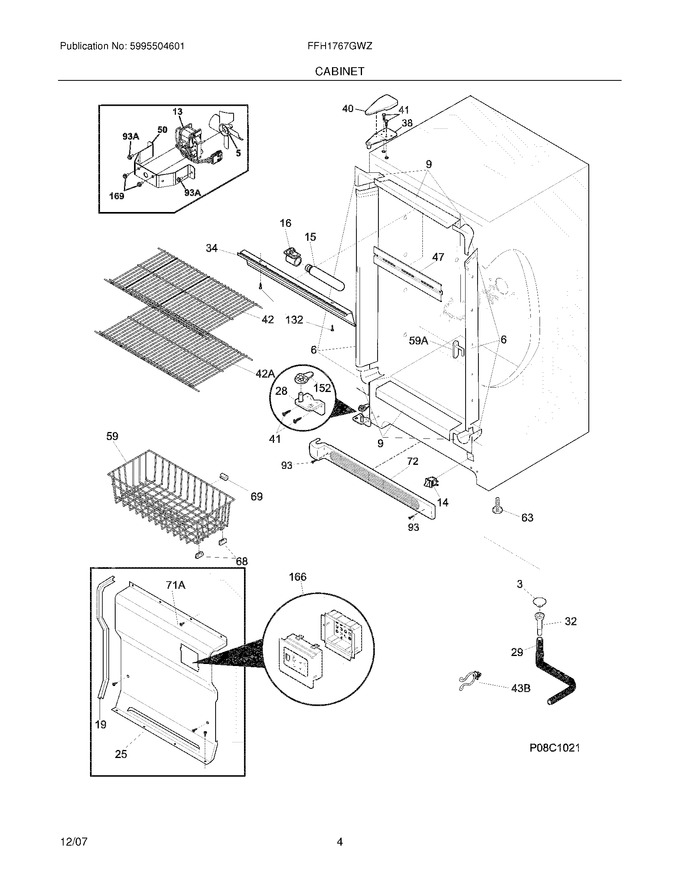

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604200		Breaker Kit W/corners				$ 227.12
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
19	216204900		Gasket, Evap Cover				$ 51.45
25	297098802		Cover-evaporator		Appelez-nous	-
28	216978201		Hinge,bracket, Lower ,lh				$ 117.02
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816223		Shield-light		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	216936800		Screw-hinge,12-24x.700 Hwh		Appelez-nous	-
42	216458400		Shelf,14.50x27.88 ,(3)		Appelez-nous	-
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount				$ 22.75
59	216211700		Basket		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide Basket (4)				$ 35.25
69	5305878546		Bumper Basket (2)				$ 7.23
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 39.29
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
152	216974600		Bearing,hinge Closer				$ 16.36
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
42A	216458200		Shelf,12.50x27.88 ,white		Appelez-nous	-
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
59A	216486500		Stop-basket,(2)				$ 20.58
71A	297146800		Screw,8-18ab X 0.470 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
F166	297282800		Electronic Cold Control,assy   (Replaces: 297142400)				$ 218.30
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	240494001		Plug,white   (Replaces: 297095300)			Immediately	$ 18.20
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216910403		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16

    View Diagram in Separate Window       Print Part List
