SELECT A DIAGRAM

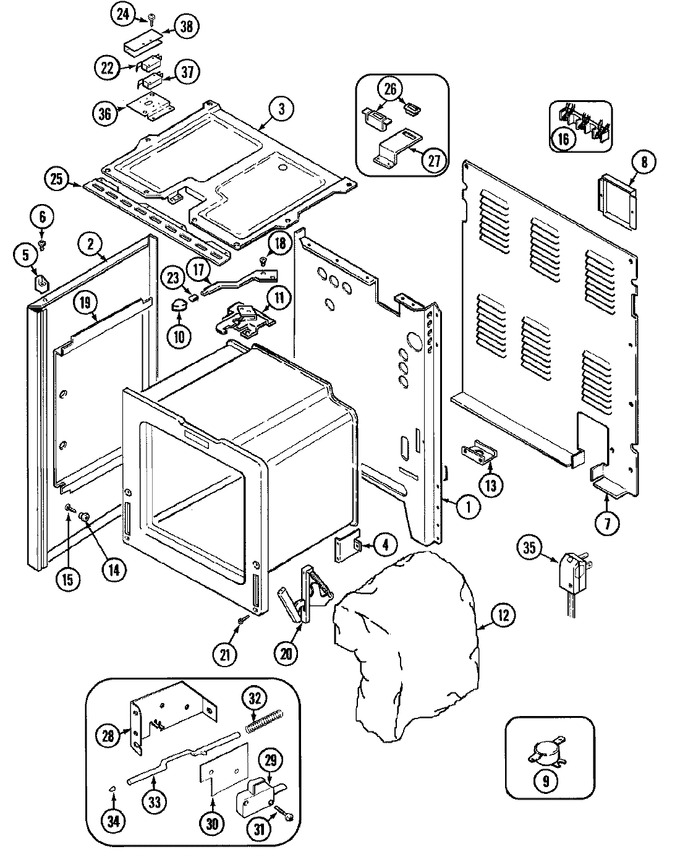

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 15 |
|
Immediately | $ 12.62 | |||
| 1 | 74001772 | Back, Main | 15 |
|
- | ||||
| 2 | 8270P078-60 | Tape, Foil (29 1/2``) | 15 |
|
- | ||||
| 2 | 7003P067-60 | Insulator, Damper Sound | 15 |
|
- | ||||
| 2 | 74001885 | Panel, Side (alm) | 15 |
|
- | ||||
| 3 | 74001695 | Bottom, Burner Box | 15 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 15 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 15 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 15 |
|
- | ||||
| 6 | 7101P313-60 | Screw (8abx3/8-zn) | 15 |
|
- | ||||
| 7 | 4005F455-51 | Cover, Wire | 15 |
|
- | ||||
| 8 | 4005F427-51 | Cover, Access | 15 |
|
- | ||||
| 9 | 7403P160-60 | Switch, Hi-limit | 15 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note | 19 |
|
- | ||||
| 10 | 7701P151-60 | Handle, Latch (alm) | 15 |
|
- | ||||
| 11 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 21 |
|
$ 6.70 | ||||
| 11 | 8002P025-60 | Latch Assy. | 15 |
|
- | ||||
| 11 | 74003032 | Latch Assy. | 21 |
|
- | ||||
| 11 | 4804F028-60 | Insulation, Latch Assy. | 15 |
|
- | ||||
| 11 | 7101P280-60 | Screw W/washer (blk) | 15 |
|
- | ||||
| 12 | 74001800 | Insulation, Back | 15 |
|
- | ||||
| 12 | 4804F036-60 | Insulation, Wrap | 15 |
|
- | ||||
| 13 | 3605F174-51 | Plate, Conduit Tubing | 15 |
|
- | ||||
| 14 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 15 |
|
$ 7.07 | ||||
| 15 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 15 |
|
Immediately | $ 6.98 | |||
| 16 | 7401P041-60 | Board, Terminal | 15 |
|
- | ||||
| 17 | 74002973 | Lever, Latch (gry) | 19 |
|
- | ||||
| 17 | 74001725 | Lever, Door Latch | 15 |
|
- | ||||
| 18 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 15 |
|
$ 4.29 | ||||
| 19 | 3804F103-51 | Retainer, Insulation (side) | 15 |
|
- | ||||
| 20 | 7106P056-60 | Hinge | 15 |
|
- | ||||
| 21 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 15 |
|
$ 4.29 | ||||
| 22 | 74001708 | Switch, Door Latch | 15 |
|
- | ||||
| 23 | W10124350 | Not Required Part Or See Note | 19 |
|
- | ||||
| 23 | 7112P112-60 | Clip, Latch Lever | 15 |
|
$ 4.83 | ||||
| 24 | 7101P130-60 | Screw, Latch Switch | 15 |
|
- | ||||
| 25 | 3801F305-80 | Bracket, Main Top | 15 |
|
- | ||||
| 26 | 7407P106-60 | Light, Indicator | 15 |
|
- | ||||
| 27 | W10124350 | Not Required Part Or See Note | 23 |
|
- | ||||
| 27 | 3801F312-45 | Bracket, Indicator Light | 15 |
|
- | ||||
| 28 | 74001632 | Bracket, Switch Actuator | 15 |
|
- | ||||
| 28 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 15 |
|
Immediately | $ 6.47 | |||
| 29 | 74001628 | Switch, Door Light | 15 |
|
- | ||||
| 30 | 74001872 | Insulator, Switch | 15 |
|
- | ||||
| 31 | 7101P330-60 | Screw, Switch | 15 |
|
- | ||||
| 32 | 74001629 | Spring, Door Switch | 15 |
|
$ 15.03 | ||||
| 33 | 74001630 | Rod, Door Light Switch | 15 |
|
- | ||||
| 34 | 74001631 | Bumper, Rod | 15 |
|
$ 5.22 | ||||
| 35 | 7402P050-60 | Cord, Power | 15 |
|
- | ||||
| 36 | 74001744 | Plate, Latch Switch | 15 |
|
- | ||||
| 37 | 74001743 | Switch, Latch (double Lock) | 15 |
|
- | ||||
| 38 | 74001999 | Insulator, Switch | 15 |
|
- |
