01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base

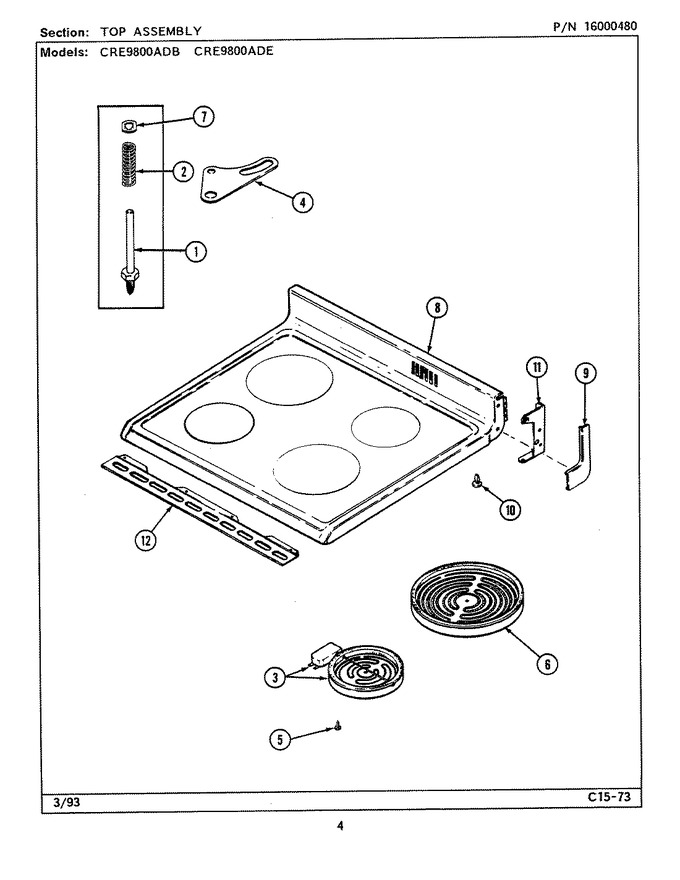

05 - Top Assembly (cre9800adx)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7113P013-60 | Pin, Element | 10 |
|
- | ||||
| 2 | 7803P066-60 | Spring, Element Support | 10 |
|
- | ||||
| 3 | Y04000064 | Limiter (6`` Element) | 10 |
|
- | ||||
| 3 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 10 |
|
Immediately | $ 309.01 | |||
| 4 | 3819F013-45 | Clip, Element | 10 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7101P076-60) | 10 |
|
$ 6.95 | ||||
| 6 | Y04000063 | Limiter (8`` Element) | 10 |
|
- | ||||
| 6 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 10 |
|
Immediately | $ 316.13 | |||
| 7 | 7112P091-60 | Clip, Retainer | 10 |
|
- | ||||
| 8 | 5706S080-60 | Main Top Assy. | 10 |
|
- | ||||
| 9 | 8270P095-60 | Tape, Double Sided | 10 |
|
- | ||||
| 9 | 7746P034-60 | End Cap (rt-chr)----na | 10 |
|
- | ||||
| 9 | 7746P035-60 | End Cap (lt-chr) | 10 |
|
- | ||||
| 10 | 8016P014-60 | Glide, Main Top | 10 |
|
- | ||||
| 11 | 3807F424-51 | Support, Housing (lt) | 10 |
|
- | ||||
| 11 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 3807F423-51 | Support, Housing (rt) | 10 |
|
- | ||||
| 12 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 10 |
|
Immediately | $ 4.86 | |||
| 12 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 10 |
|
Immediately | $ 9.95 | |||
| 12 | 3801F305-80 | Bracket, Main Top | 10 |
|
- |
