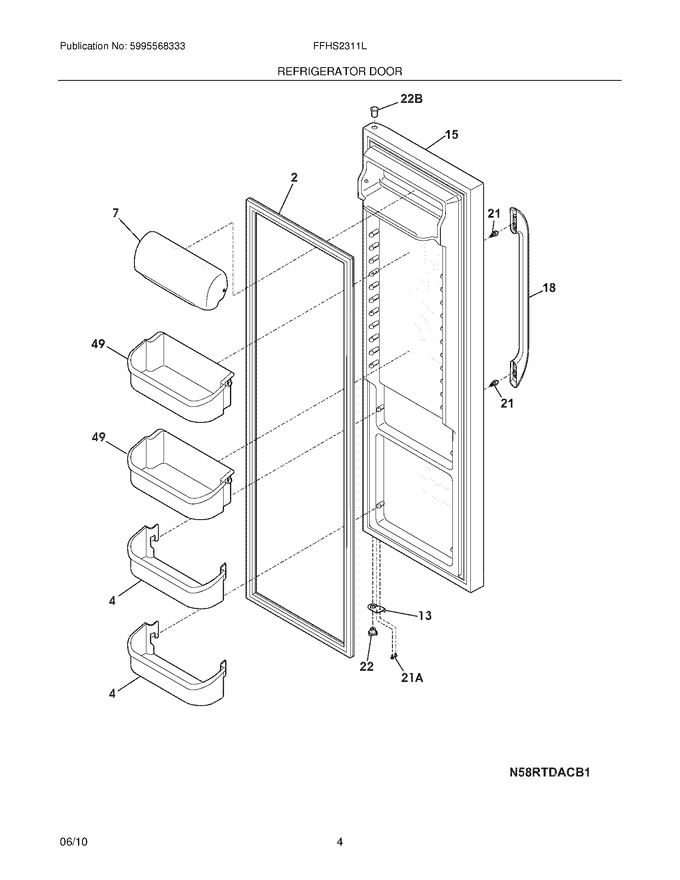

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door,white ,magnetic   (Replaces: 241786003)			Immediately	$ 94.66
4	240363701		Bin-door,2-liter			Immediately	$ 59.42
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
13	240581901		Door Stop,white ,refr				$ 43.95
15	242038852		Door-refr,white ,complete Assy				$ 363.98
18	242059101		Handle-door,white				$ 125.89
21	241695904		Screw				$ 14.41
22	242015301		Bearing-hinge(ref),natural ,closer				$ 11.44
49	240324501		Bin-door,gallon			Immediately	$ 69.06
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
