SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Oven/base


04 - Top Assembly


05 - Wiring Information

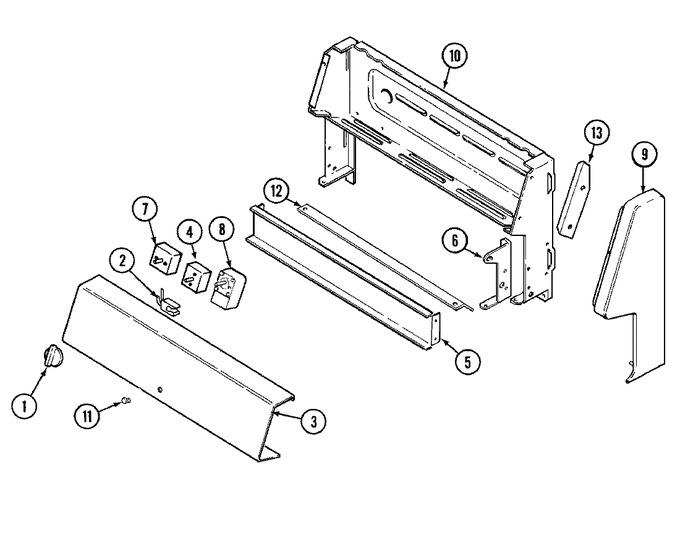

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7737P030-60		Knob, Switch   (Replaces: 7737P030-60)	29			$ 17.81
1	7735P031-60		Knob, Thermostat	29	Appelez-nous	-
1	7739P037-60		Knob Selector	29	Appelez-nous	-
2	W10852510		Light, Indicator   (Replaces: 7407P102-60)	29			$ 106.11
3	2601F393-09		Panel, Control	29	Appelez-nous	-
3	WP74004005		Screw   (Replaces: 7118P013-60)	29			$ 6.95
4	WP7403P255-60		Switch, Selector   (Replaces: 7403P255-60)	29			$ 131.41
5	3802F088-51		Brace, Control Panel	29	Appelez-nous	-
6	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	29		Immediately	$ 12.62
6	3418D098-60		Hinge, Main Top (rt)	29	Appelez-nous	-
6	3418D097-60		Hinge, Main Top (lt)	29	Appelez-nous	-
7	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	29		Immediately	$ 57.78
7	WP7101P309-60		Screw   (Replaces: 7101P309-60)	29		Immediately	$ 6.26
7	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	29		Immediately	$ 35.10
8	7404P105-60		Thermostat	29			$ 208.86
9	7101P317-60		Screw	29	Appelez-nous	-
9	7726P051-60		End Cap (rt-blk)	29	Appelez-nous	-
9	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	29			$ 15.94
9	7726P052-60		End Cap (lt-blk)	29	Appelez-nous	-
10	4001F091-51		Housing, Control Panel	29	Appelez-nous	-
11	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	29			$ 6.73
12	3604F201-80		Shield, Sight	29	Appelez-nous	-
13	3807F450-45		Support, Control Pnl (lt)	29	Appelez-nous	-
13	3807F449-45		Support, Control Pnl (rt)	29	Appelez-nous	-
NI	74001013		Harness, Control/top	29	Appelez-nous	-
NI	5170D119-60		Harness, Control Panel	29	Appelez-nous	-
NI	74002250		Manual, Use & Care	29	Appelez-nous	-
NI	16002079		Guide, Quick Ref - Admiral	29	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
