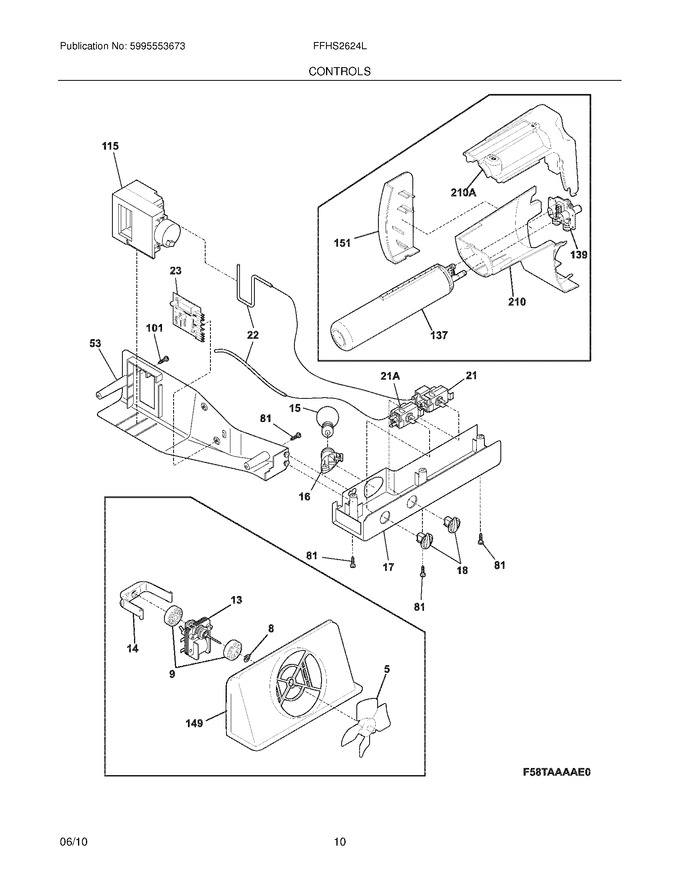

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
9	241563601		Bushing-motor Mtg			Immediately	$ 17.72
13	808602602		Motor-evap Fan   (Replaces: 241854601)				$ 203.63
14	242135301		Clip,evap Fan Motor   (Replaces: 241517701)				$ 7.79
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
17	240383309		Box-control,front		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
22	218660704		Tube,insulator ,plastic				$ 14.89
53	240369501		Box-control				$ 78.37
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
101	241637202		Screw,no.8ab X 1 3/4``				$ 5.31
115	241600902		Damper Assy,w/seal				$ 274.83
137	WF3CB		Filter-water,carbon   (Replaces: 242069601)			Immediately	$ 88.23
139	242009604		Base-water Filter   (Replaces: 242009601)			Immediately	$ 33.14
149	241563501		Shroud-fan Orfice		Appelez-nous	-
151	242069701		Cover-water Filter				$ 62.24
210	241983814		Housing-water Filtr   (Replaces: 241983803)				$ 74.42
F149	241528305		Seal,shroud		Appelez-nous	-
F16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
F21	241537104		Control-temperature   (Replaces: 241586503)			Immediately	$ 198.68
F210	241998303		Mount-water Filter   (Replaces: 241998301)				$ 14.41
F21A	5304496561		Control-temperature,frzr Section   (Replaces: 5304421067)			Immediately	$ 141.37
F23	241508001		Control-defrost,adaptive Timer ,pc Board		Appelez-nous	-
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
FNI	241537804		Harness-wiring,control Box				$ 65.73
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 17.01
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 31.36

    View Diagram in Separate Window       Print Part List
