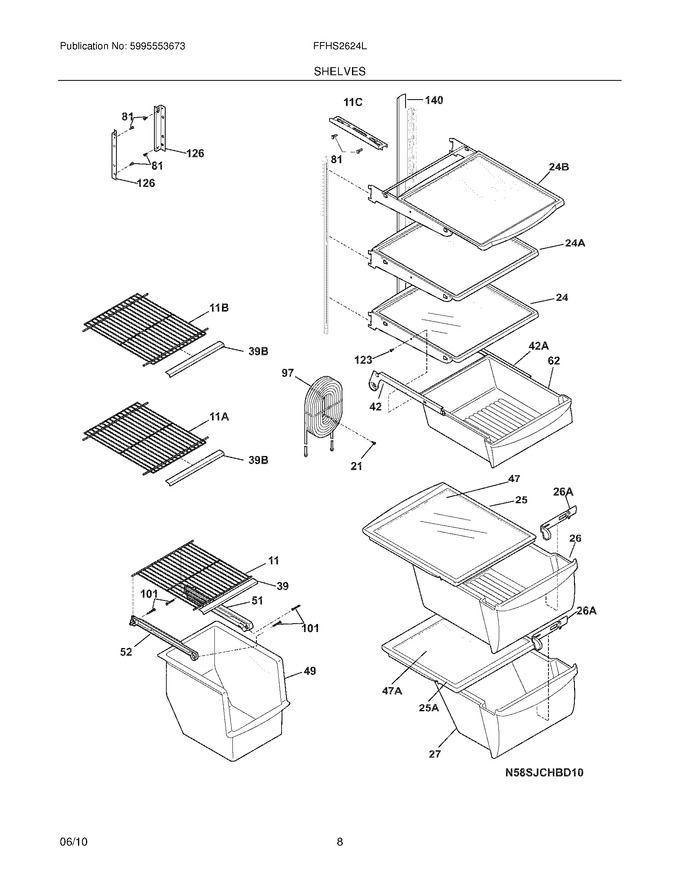

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657602		Shelf,flip Up ,wire				$ 86.45
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355262		Shelf-``spill-safe``,fixed		Appelez-nous	-
25	240599301		Cover-crisper Pan,upper			Immediately	$ 94.38
26	240351061		Pan-crisper,upper			Immediately	$ 110.01
27	240351240		Pan-crisper,lower				$ 203.45
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	240342831		Pan-meat		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	242220506		Water Tank   (Replaces: 240545310)				$ 94.98
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	240430501		Channel,wtr Tube Cover				$ 97.81
11A	241657512		Shelf,fixed ,freezer   (Replaces: 241657502)				$ 16.87
11B	241657514		Shelf,fixed ,upper ,freezer   (Replaces: 241657504)		Appelez-nous	-
11C	240324101		Shelf-pizza				$ 59.91
24A	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355256)				$ 170.63
24B	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350136)				$ 176.70
25A	240350903		Cover-crisper Pan,lower			Immediately	$ 91.99
26A	240362201		Control-humidity				$ 69.46
39B	240430702		Trim-shelf,12.39`` ,front				$ 21.89
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 58.12
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
F42A	240350001		· Spring-meat Pan Rail				$ 76.55
F42A	240356702		Seal-meat Pan		Appelez-nous	-
F42A	240349901		Block-meat Pan Rail,lh				$ 67.01
NI	241595202		Clip-slide,pan-crisper				$ 18.20
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	242028531		Energy Guide		Appelez-nous	-
