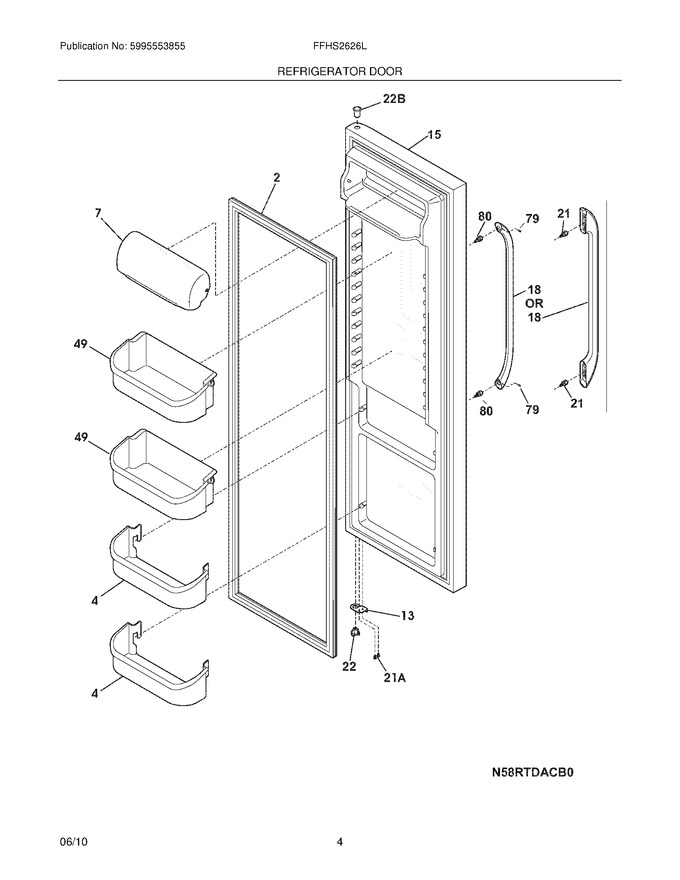

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241786001)				$ 95.90
4	240323002		Bin-door,pseudo ,clear ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
13	240581901		Door Stop,white ,refr				$ 43.95
15	242038816		Door-refr,white ,complete Assy		Appelez-nous	-
18	242059101		Handle-door,white				$ 125.89
21	241695904		Screw				$ 14.41
22	242015301		Bearing-hinge(ref),natural ,closer				$ 11.44
49	240356402		Bin-door,gallon			Immediately	$ 106.83
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
