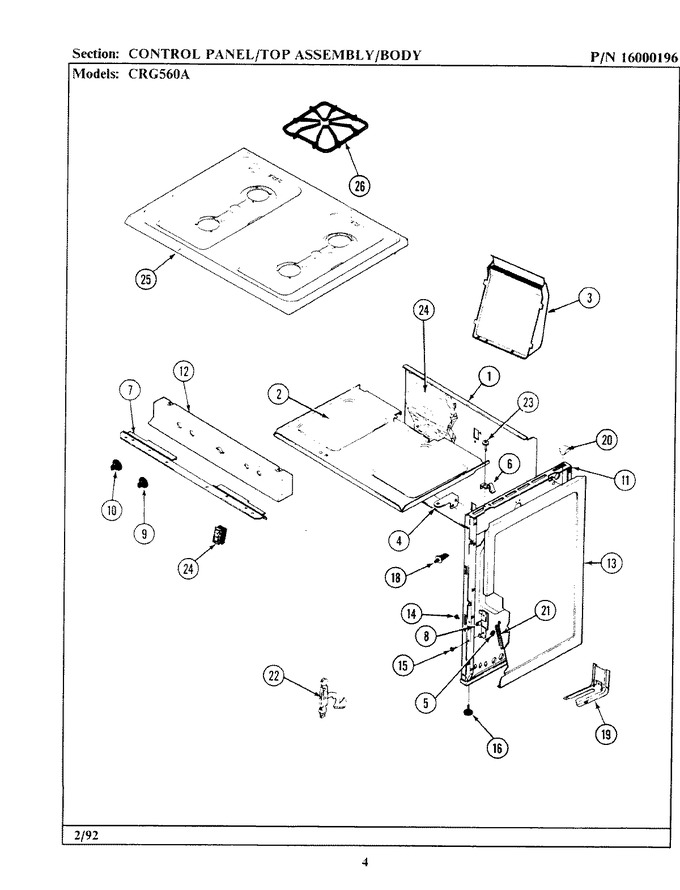

02 - Control Panel/top Assembly/body
03 - Door/access Drawer
04 - Gas Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F165-80 | Back, Main | 00 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 2 | 4011F183-80 | Bottom Burner Box | 00 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 3 | 4006W026-80 | Box, Flue | 00 |
|
- | ||||
| 4 | 3801F049-34 | Bracket,control Panel (l) | 00 |
|
- | ||||
| 4 | 3801F047-34 | Bracket,control Panel (r) | 00 |
|
- | ||||
| 5 | 7112P019-60 | Clip, Hinge Pin | 00 |
|
- | ||||
| 6 | 7112P073-60 | Clip, Top Retainer | 00 |
|
- | ||||
| 7 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 00 |
|
$ 15.94 | ||||
| 7 | 4012F021-80 | Front, Burner Box | 00 |
|
- | ||||
| 8 | 8016P008-60 | Glide, Oven Door Hinge | 00 |
|
- | ||||
| 8 | 3418A029-34 | Hinge Assy. (lt) | 00 |
|
$ 48.47 | ||||
| 8 | 3418A030-34 | Hinge Assy. (rt) | 00 |
|
- | ||||
| 9 | 7731P032-60 | Knob, Thermostat | 00 |
|
- | ||||
| 10 | 7733P069-60 | Knob, Burner | 00 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 11 | 4009W071-80 | Lining, Inner Side | 00 |
|
- | ||||
| 11 | 8008P012-60 | Grommet, Nylon | 00 |
|
- | ||||
| 11 | 3601F161-80 | Baffle, Oven Door | 00 |
|
- | ||||
| 11 | 7103P045-60 | Nut, Nylon | 00 |
|
- | ||||
| 11 | 4009W063-80 | Lining Inner Side - R | 00 |
|
- | ||||
| 12 | WP4159193 | Screw (Replaces: 7118P004-60) | 00 |
|
$ 4.29 | ||||
| 12 | 7712P117-60 | Trim, Manifold | 00 |
|
- | ||||
| 12 | 7112P087-60 | Clip, Top Locking | 00 |
|
- | ||||
| 13 | 2618F073-74 | Panel, Side (alm) | 00 |
|
- | ||||
| 13 | 2618F073-71 | Panel, Side (wht)----na | 00 |
|
- | ||||
| 13 | 2618F073-70 | Panel, Side (black) | 00 |
|
- | ||||
| 14 | 7113P002-60 | Pin, Hinge | 00 |
|
$ 9.05 | ||||
| 15 | WP4159193 | Screw (Replaces: 7101P112-60) | 00 |
|
$ 4.29 | ||||
| 16 | Y7101P25460 | Leg, Leveling | 00 |
|
- | ||||
| 17 | 4804F003-60 | Insulation - Oven Rear | 00 |
|
- | ||||
| 18 | 7403P240-60 | Switch, Door Light | 00 |
|
- | ||||
| 19 | 3801F198-51 | Bracket, Tie-down | 00 |
|
- | ||||
| 20 | 8003P011-60 | Spacer, Main Top | 00 |
|
- | ||||
| 21 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 00 |
|
$ 16.55 | ||||
| 22 | 3420A033-34 | Stop, Oven Door | 00 |
|
- | ||||
| 23 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 24 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 00 |
|
$ 91.35 | ||||
| 25 | 2001F080-81 | Top, Main | 00 |
|
- | ||||
| 25 | 2001F080-84 | Top, Main | 00 |
|
- | ||||
| 26 | 2003W023-00 | Grate (blk) | 00 |
|
- |
