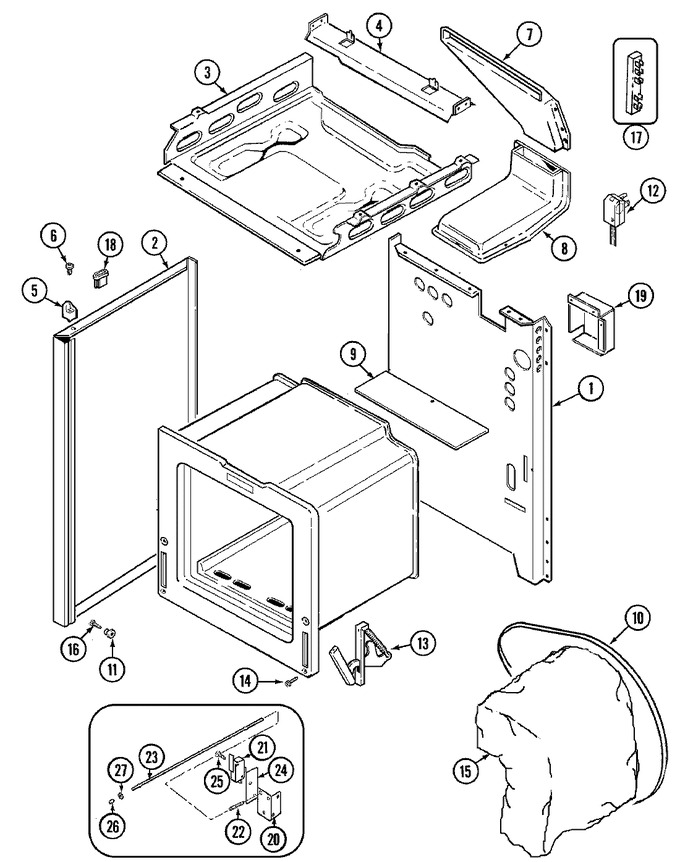

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F188-80		Back, Main	10	Appelez-nous	-
1	8008P021-60		Grommet, Snap	10	Appelez-nous	-
2	2618F085-74		Panel, Side (alm)	10	Appelez-nous	-
2	2618F099-74		Panel, Side (alm)	13	Appelez-nous	-
2	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
3	4011F218-80		Bottom, Burner Box	10	Appelez-nous	-
4	3807F411-51		Support, Burner	10	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
6	WP74004005		Screw   (Replaces: 7118P013-60)	10			$ 6.95
7	4022W005-19		Extension, Flue Box	10	Appelez-nous	-
8	4006W113-45		Box, Vent	10	Appelez-nous	-
8	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	10			$ 6.47
9	3807F416-45		Support, Oven Back	10	Appelez-nous	-
10	4820F001-59		Strap, Retainer	10	Appelez-nous	-
11	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
12	7402P043-60		Cord, Power	10	Appelez-nous	-
13	7106P033-60		Hinge, Door	10	Appelez-nous	-
14	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	10			$ 4.29
15	4804F032-60		Insulation, Oven Wrapper	10	Appelez-nous	-
15	4804F031-60		Insulation, Oven Back	10	Appelez-nous	-
16	W11772394		Screw   (Replaces: 7101P300-60)	10		Immediately	$ 10.94
17	7401P042-60		Board, Terminal	10	Appelez-nous	-
18	8007P023-60		Bushing, Prop	10	Appelez-nous	-
19	4005F385-51		Cover, Back Wire	10	Appelez-nous	-
20	3801F316-51		Bracket, Light Switch	10	Appelez-nous	-
21	7403P281-60		Switch, Micro	10	Appelez-nous	-
22	7803P067-60		Spring	10	Appelez-nous	-
23	7809P017-60		Rod, Light Switch	10	Appelez-nous	-
24	7003P047-60		Insulator, Switch	10	Appelez-nous	-
25	7101P330-60		Screw, Switch	10	Appelez-nous	-
26	8003P012-60		Bumper	10	Appelez-nous	-
27	7109P020-60		Washer	10	Appelez-nous	-
