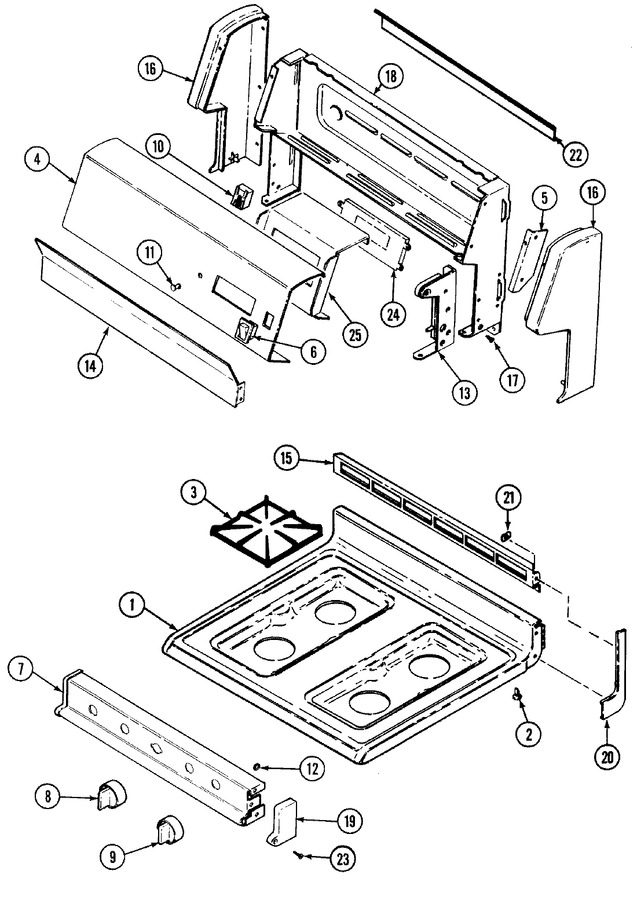

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Gas Controls
04 - Top Assembly/control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W082-81 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 3 | 2003W027-00 | Grate (blk) | 10 |
|
- | ||||
| 4 | WPY706189 | Screw (Replaces: 7101P332-60) | 10 |
|
Immediately | $ 6.47 | |||
| 4 | 7703P668-60 | Panel, Control | 16 |
|
- | ||||
| 4 | 7703P371-60 | Panel, Control | 10 |
|
- | ||||
| 5 | 3807F449-45 | Support, Control Pnl (rt) | 10 |
|
- | ||||
| 5 | 3807F450-45 | Support, Control Pnl (lt) | 10 |
|
- | ||||
| 6 | 7403P309-60 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 7 | 7712P181-60 | Panel, Manifold | 10 |
|
- | ||||
| 8 | 7731P106-60 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| 9 | 7733P099-60 | Knob, Valve (blk) | 10 |
|
$ 25.55 | ||||
| 10 | 7407P100-60 | Light, Indicator | 10 |
|
- | ||||
| 11 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 12 | 7112P092-60 | Clip, Spring Grip | 10 |
|
- | ||||
| 13 | 3418A088-34 | Hinge, Main Top (lt) | 10 |
|
- | ||||
| 13 | 3418A087-34 | Hinge, Main Top (rt) | 10 |
|
- | ||||
| 14 | 3604F188-09 | Shield, Flue | 10 |
|
- | ||||
| 15 | 3608F042-09 | Trim, Vent (blk) | 10 |
|
- | ||||
| 16 | 7726P061-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 16 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 7726P062-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 17 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 7101P317-60 | Screw | 10 |
|
- | ||||
| 18 | 4001F097-51 | Housing, Control Panel | 10 |
|
- | ||||
| 19 | 7744P109-60 | End Cap, Manifold (lt-blk) | 10 |
|
- | ||||
| 19 | 7744P108-60 | End Cap, Manifold (rt-blk) | 10 |
|
- | ||||
| 20 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 20 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 21 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 22 | 8036P002-60 | Shield, Sight | 10 |
|
- | ||||
| 23 | 7101P311-60 | Screw----na | 10 |
|
- | ||||
| 24 | 7602P121-60 | Clock (blk) | 16 |
|
- | ||||
| 24 | 7101P293-60 | Screw | 10 |
|
- | ||||
| 24 | 7602P113-60 | Clock | 10 |
|
- | ||||
| 25 | 3801F274-45 | Bracket, Clock | 10 |
|
- | ||||
| 25 | 8111P032-60 | Manual, Use & Care | 10 |
|
- | ||||
| 25 | 5180D154-60 | Harness, Control Panel | 10 |
|
- |
