02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Body Parts

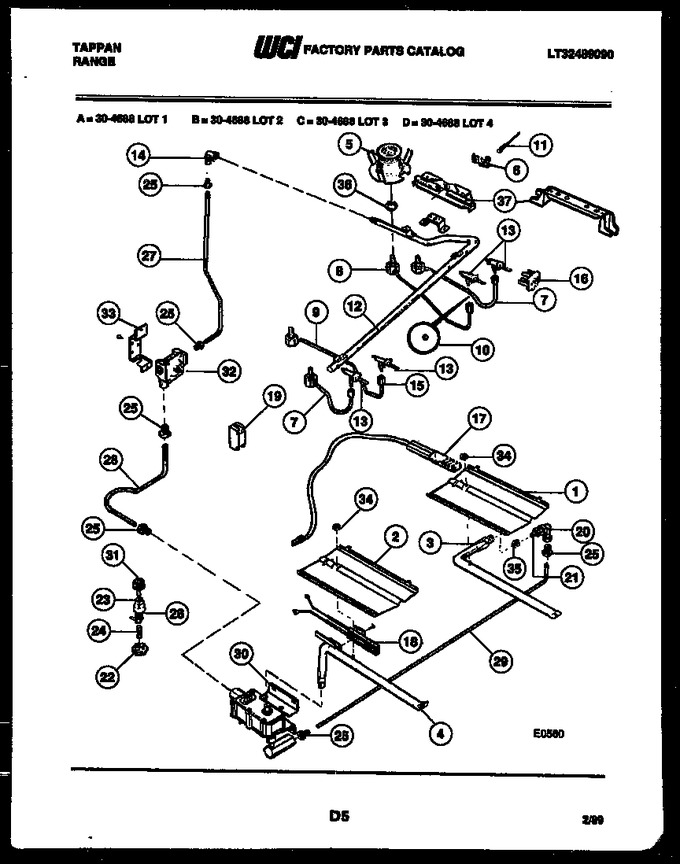

06 - Burner, Manifold And Gas Control


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131283		Baffle, Broil		Appelez-nous	-
2	3131327		Baffle, Oven		Appelez-nous	-
3	079T028P01		Burner, Broiler		Appelez-nous	-
4	3131634		Burner Oven		Appelez-nous	-
5	079T032S02		Burner, Top		Appelez-nous	-
6	3018617		Retainer, Igniter		Appelez-nous	-
7	3131970		Burner Tube-rf & Lf		Appelez-nous	-
8	079T033H02		Burner, Tube		Appelez-nous	-
9	079T033H03		Burner Tube, Left Rear		Appelez-nous	-
10	247T074P01		Ferrule (4)		Appelez-nous	-
11	3131105		Igniter, Top Burner		Appelez-nous	-
13	3017846		Valve 3 Pos (4)		Appelez-nous	-
14	215T013P01		Elbow 1/2 Npt 9/16-24		Appelez-nous	-
16	3131580		Switch-ignition		Appelez-nous	-
17	316T023P12		Igniter Burner Broiler		Appelez-nous	-
18	3131300		Igniter, Oven		Appelez-nous	-
19	3200669		Igniter-module		Appelez-nous	-
20	455T008P02		Mixer, Elbow		Appelez-nous	-
21	3131358		Hex Nut 3/4		Appelez-nous	-
25	3131261		Fitting, Loxit (6)		Appelez-nous	-
26	597T034P03		Receptacle Fuse		Appelez-nous	-
27	750T085H09		Tube-aluminum Regular Manifold		Appelez-nous	-
28	3131109		Tube-valve To Reg		Appelez-nous	-
29	3131364		Tube-aluminum Valve/mixer		Appelez-nous	-
30	774T116P11		Valve, Safety-dual		Appelez-nous	-
31	123T126P01		Cap Fuse		Appelez-nous	-
32	166T011P01		Control-regular		Appelez-nous	-
33	3131110		Bracket-regular		Appelez-nous	-
34	479T069P03		Nut 10-24 Hex		Appelez-nous	-
35	499T015P08		Spud No 50		Appelez-nous	-
36	479T069P40		Nut Special		Appelez-nous	-
14A	3131148		Nut Compression (non-illustrated)		Appelez-nous	-
30A	3131598		Washer (repair) (non-illustrated)		Appelez-nous	-
36A	072T821F01		Bracket, Oven Burner Support		Appelez-nous	-
