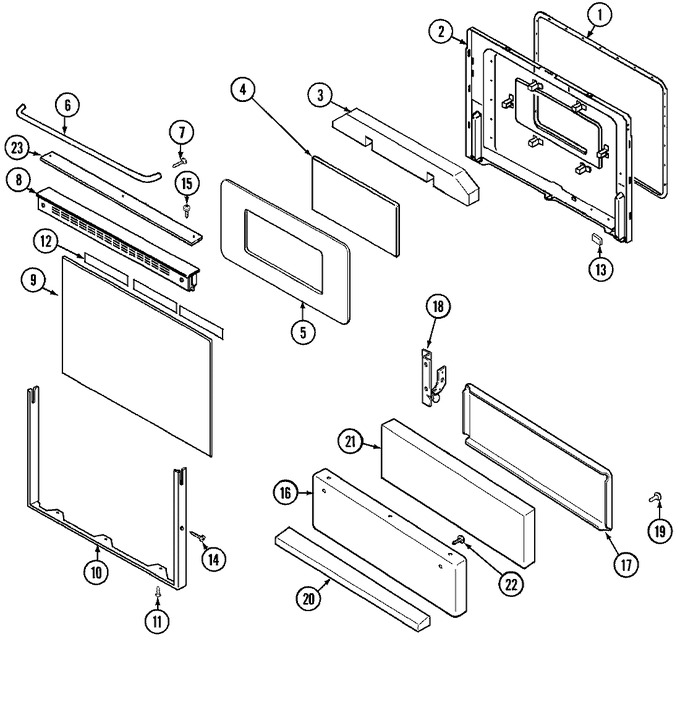

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
2	74003248		Lining, Door	20	Appelez-nous	-
2	74002460		Lining, Door	10	Appelez-nous	-
2	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
2	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
3	74002458		Insulation, Door	10	Appelez-nous	-
4	74002459		Glass, Door (inner)	10	Appelez-nous	-
5	7101P209-60		Screw	10	Appelez-nous	-
5	74002461		Baffle, Door	10	Appelez-nous	-
6	7701P149-60		Handle, Oven Door (blk)	10	Appelez-nous	-
7	7101P326-60		Screw	10	Appelez-nous	-
8	7706P305-60		Trim, Door (upper-blk)	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	7902P361-60		Glass, Door (outer/blk)	10	Appelez-nous	-
10	7706P309-60		Frame, Door (blk)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	8270P095-60		Tape, Double Sided	10	Appelez-nous	-
13	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
14	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
15	74001521		Washer (1``)	10			$ 5.27
15	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	74001729		Panel, Drawer (wht)	10	Appelez-nous	-
17	74002397		Lining, Drawer	10	Appelez-nous	-
18	74002398		Hinge, Drawer	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
19	8016P015-60		Glide	10			$ 5.65
20	7701P119-60		Handle, Door (blk)	10	Appelez-nous	-
21	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
22	74002481		Screw	10			$ 5.82
