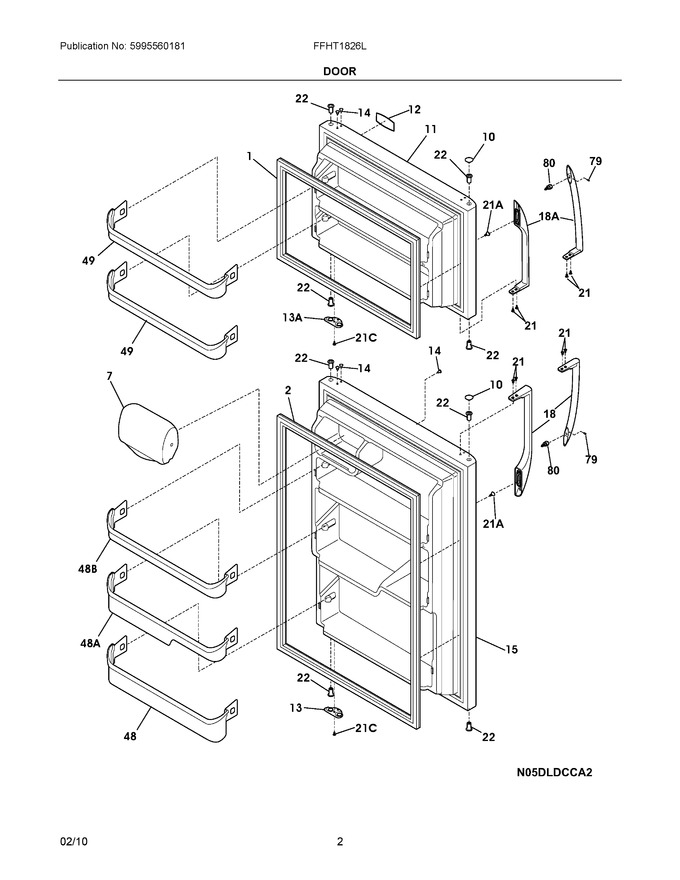

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872509 | Gasket-frzr Door, Black, Magnetic |
|
Immediately | $ 164.15 | ||||
| 2 | 241872512 | Gasket-refr Door, Black, Magnetic |
|
Immediately | $ 165.39 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 10 | 240381307 | Plug-button, Silver Mist, Hinge Brg Hole (Replaces: 240381306) |
|
Immediately | $ 16.69 | ||||
| 11 | 240409921 | Door-frzr, Silver Mist, Complete Assy |
|
$ 699.83 | |||||
| 12 | 242016301 | Nameplate |
|
$ 4.26 | |||||
| 13 | 240312422 | Door Stop, Black, Refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 14 | 240494006 | Plug-button, Silver Mist |
|
$ 19.69 | |||||
| 15 | 240410134 | Door-refr, Silver Mist, Complete Assy |
|
$ 662.66 | |||||
| 18 | 5304506471 | Handle-door, Black, Refr-rh/frzr-lh (Replaces: 242059506) |
|
Immediately | $ 95.56 | ||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge, Black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door, Pseudo, Bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495804 | Bin-door, Pseudo, Frzr |
|
Immediately | $ 43.29 | ||||
| 13A | 240312415 | Door Stop, Black, Frzr |
|
$ 21.27 | |||||
| 18A | 5304506471 | Handle-door, Black, Refr-lh/frzr-rh (Replaces: 242059503) |
|
Immediately | $ 95.56 | ||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240337901 | Bin-door, Refr |
|
Immediately | $ 52.13 | ||||
| 48B | 240338001 | Bin-door, Pseudo, Gallon, Refr |
|
Immediately | $ 34.96 |
