01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Informatin
SELECT A DIAGRAM
New Model Search:

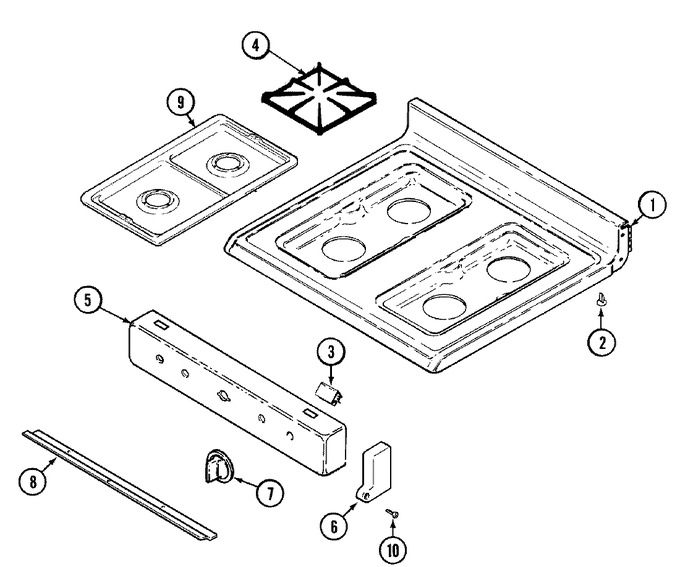

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002440 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 3 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 4 | 74001059 | Grate (blk) | 18 |
|
- | ||||
| 4 | 2003W027-00 | Grate (blk) | 10 |
|
- | ||||
| 4 | 74001653 | Grate (blk) | 16 |
|
- | ||||
| 4 | 74001059 | Grate (blk) | 13 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 74002715 | Panel, Manifold (blk) | 11 |
|
- | ||||
| 5 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 5 | 7712P176-60 | Panel, Manifold | 10 |
|
- | ||||
| 6 | 7744P108-60 | End Cap, Manifold (rt-blk) | 10 |
|
- | ||||
| 6 | 74002724 | End Cap, Manifold Panel (blk) | 11 |
|
- | ||||
| 6 | 74002725 | End Cap, Manifold Panel (blk) | 11 |
|
- | ||||
| 6 | 7744P109-60 | End Cap, Manifold (lt-blk) | 10 |
|
- | ||||
| 7 | 7733P099-60 | Knob, Valve (blk) | 10 |
|
$ 25.55 | ||||
| 7 | 74002631 | Knob, Valve (blk) | 10 |
|
- | ||||
| 8 | 74002447 | Shield, Sight | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- | ||||
| 10 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| NI | 7112P092-60 | Clip, Spring Grip | 10 |
|
- | ||||
| NI | WP3195558 | Nut, Push On (Replaces: 74002563) | 11 |
|
$ 7.68 |
