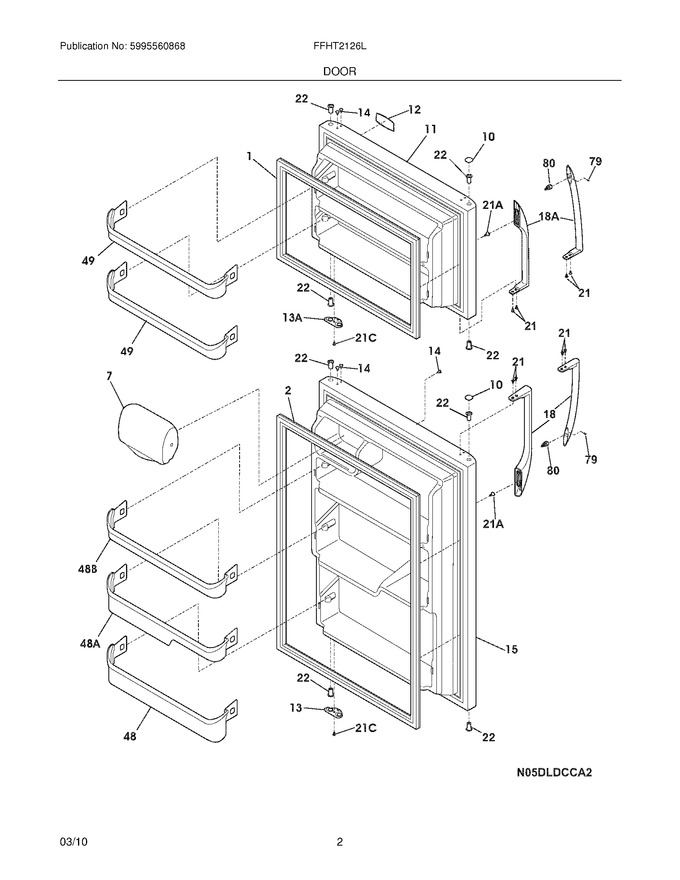

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240337712 | Door-dairy,w/o Graphics ,clear (Replaces: 240337703) |
|
Immediately | $ 36.41 | ||||
| 10 | 240381303 | Plug-button,black ,hinge Brg Hole |
|
$ 69.77 | |||||
| 11 | 240450313 | Door-frzr,black ,complete Assy |
|
$ 597.57 | |||||
| 12 | 242016301 | Nameplate |
|
$ 4.26 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 14 | 240494003 | Plug-button,black |
|
$ 18.20 | |||||
| 15 | 240450413 | Door-refr,black ,complete Assy |
|
$ 513.51 | |||||
| 18 | 5304506471 | Handle-door,black ,refr-rh/frzr-lh (Replaces: 242059506) |
|
Immediately | $ 95.56 | ||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 , (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 43.29 | ||||
| 13A | 240312415 | Door Stop,black ,frzr |
|
$ 21.27 | |||||
| 18A | 5304506471 | Handle-door,black ,refr-lh/frzr-rh (Replaces: 242059503) |
|
Immediately | $ 95.56 | ||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 52.13 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 34.96 | ||||
| F1 | 242193211 | Gasket-frzr Door,black ,magnetic (Replaces: 241872511) |
|
$ 187.11 | |||||
| F2 | 242193214 | Gasket,refr Door Seal ,black ,magnetic (Replaces: 241872514) |
|
$ 190.85 |
