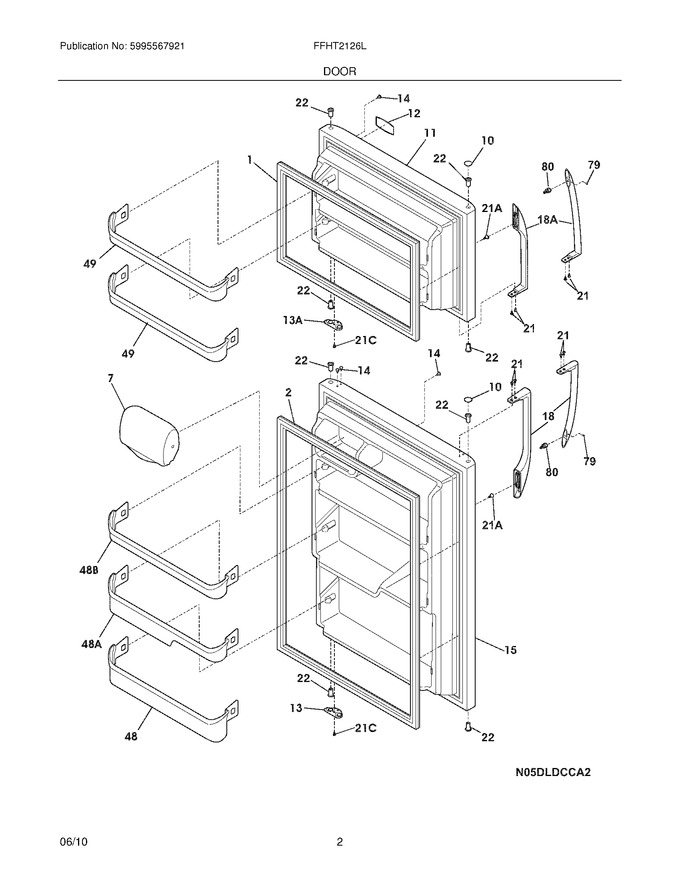

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872505 | Gasket-frzr Door,white ,magnetic |
|
$ 162.93 | |||||
| 7 | 240337712 | Door-dairy,w/o Graphics ,clear (Replaces: 240337703) |
|
Immediately | $ 36.41 | ||||
| 10 | 240381302 | Plug-button,bisque ,hinge Brg Hole ,(2) |
|
$ 19.06 | |||||
| 11 | 241798405 | Door-frzr,bisque ,complete Assy |
|
- | |||||
| 12 | 242016301 | Nameplate |
|
$ 4.26 | |||||
| 13 | 240312423 | Door Stop,bisque ,ref (Replaces: 240312407) |
|
$ 12.13 | |||||
| 14 | 240494002 | Plug-button,bisque |
|
$ 41.12 | |||||
| 15 | 241798505 | Door,refr ,bisque ,complete Assy |
|
- | |||||
| 18 | 242059505 | Handle-door,bisque ,refr-rh/frzr-lh |
|
- | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 43.29 | ||||
| 13A | 240312416 | Door Stop,bisque ,frzr |
|
- | |||||
| 18A | 242059502 | Handle-door,bisque ,refr-lh/frzr-rh |
|
- | |||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 52.13 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 34.96 | ||||
| F2 | 242193213 | Gasket,refr Door Seal ,white ,magnetic (Replaces: 241872513) |
|
Immediately | $ 190.22 | ||||
| NI | 241701901 | Screw Driver |
|
- | |||||
| NI | 241601001 | Wrench,allen |
|
- |
