01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

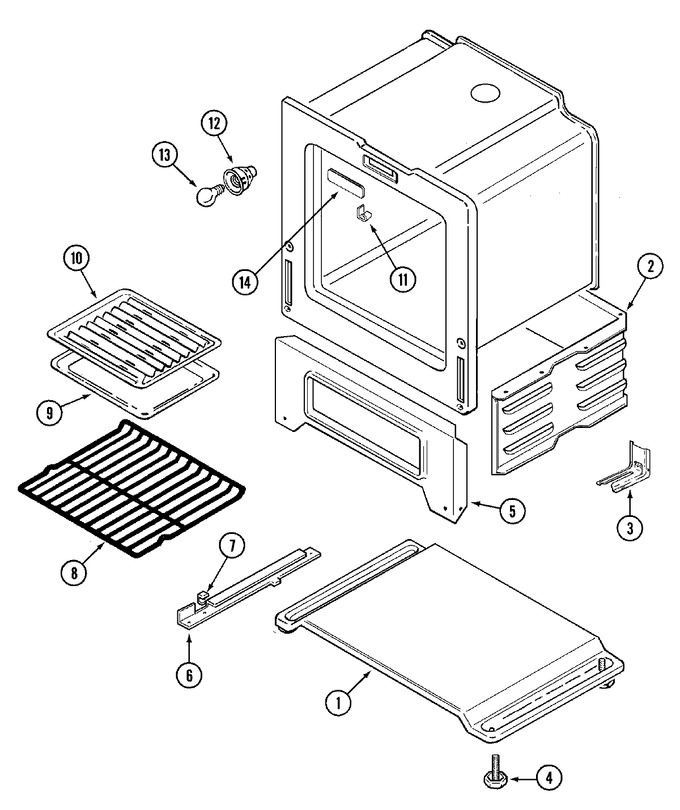

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7103P125-60 | Nut | 10 |
|
- | ||||
| 1 | 4003W029-80 | Base | 10 |
|
- | ||||
| 2 | 4016F044-45 | Sides, Broiler | 10 |
|
- | ||||
| 3 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 3 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 4 | 74001311 | Leg, Leveling | 10 |
|
- | ||||
| 5 | 2201F077-19 | Front, Broiler | 10 |
|
- | ||||
| 6 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 3404F021-51 | Track, Drawer (lt) | 10 |
|
- | ||||
| 6 | 3404F018-51 | Track, Drawer (rt) | 10 |
|
- | ||||
| 7 | 8016P010-60 | Glide, Broiler Track | 10 |
|
- | ||||
| 8 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
Immediately | $ 65.15 | |||
| 9 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 10 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 11 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 12 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 66.10 | |||
| 13 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 10 |
|
Immediately | $ 16.80 | |||
| 14 | 7718P013-60 | Cover, Door Lock | 10 |
|
- |
