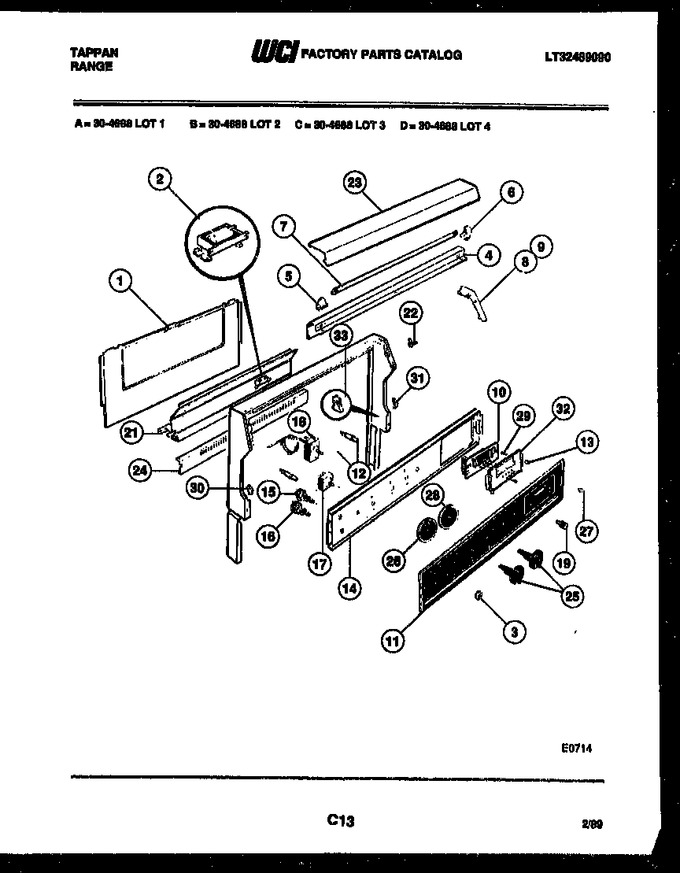

SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Body Parts


06 - Burner, Manifold And Gas Control


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield, Rear Wall		Appelez-nous	-
2	3051115		Ballast		Appelez-nous	-
3	045T071P01		Bezel, Switch		Appelez-nous	-
4	3131277		Support-fluor		Appelez-nous	-
5	3051222		Receptacle - Fluor Light Lh		Appelez-nous	-
6	3051223		Receptacle - Fluor Light Rh		Appelez-nous	-
7	3131275		Bulb-fluor 18 Watts				$ 49.40
8	3051134		Trim Campy End Lh		Appelez-nous	-
9	3051135		Trim Campy End Rh		Appelez-nous	-
10	3051117		Clock Electric		Appelez-nous	-
11	3015144		Glass Backguard		Appelez-nous	-
12	3015625		Oven Light Indicator		Appelez-nous	-
13	358T206P01		Knob, Clock		Appelez-nous	-
14	554T400F02-18		Plate-instrument Mtg.		Appelez-nous	-
15	3051312		Switch - Fluor Light		Appelez-nous	-
16	695T211P02		Switch - Oven Light		Appelez-nous	-
17	3131949		Switch Selector 4 Pos		Appelez-nous	-
18	3051323		Thermostat-oven		Appelez-nous	-
19	106T051P01		Button Clock (3)		Appelez-nous	-
20	3016852		Trim-wrapper		Appelez-nous	-
21	3131955		Trim-spalsher		Appelez-nous	-
22	3131607		Fastener, Glass (2)		Appelez-nous	-
23	3131466		Trim, Canopy		Appelez-nous	-
24	3131241		Trim-vent		Appelez-nous	-
25	3051188		Knob-control (2)		Appelez-nous	-
26	3131945		Dial		Appelez-nous	-
27	3051194		Nut, Decorative (2)		Appelez-nous	-
28	3131946		Dial Thermo		Appelez-nous	-
29	3051347		Shaft Timer		Appelez-nous	-
30	123T120P03		Cap-end (l.h.)		Appelez-nous	-
31	123T120P04		Cap-end (r.h.)		Appelez-nous	-
32	3131556		Plate, Timer Mounting		Appelez-nous	-
33	3131277		Support-backguard (2)		Appelez-nous	-
28A	655T444P01		Shield Backguard (non-illustrated)		Appelez-nous	-
31A	479T069P08		Nut 10-24 (2) (non-illustrated)		Appelez-nous	-
32A	3051304		Spacer-dial (non-illustrated)		Appelez-nous	-
