SELECT A DIAGRAM

01 - Cover

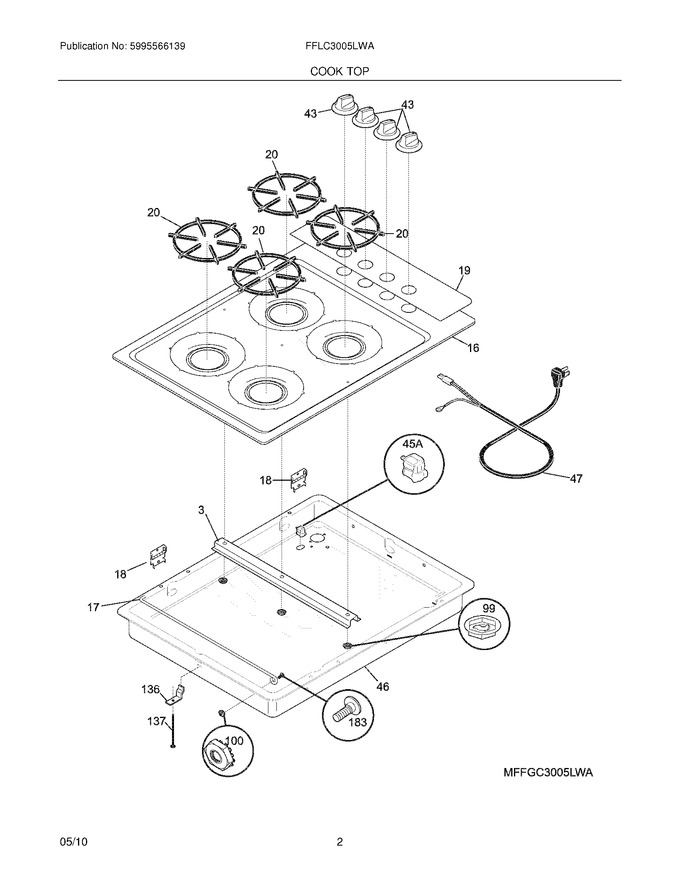

03 - Main Top


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303305547		Channel,top Stiffener		Appelez-nous	-
16	318159116		Panel,main Top ,white		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
19	318242326		Panel,control ,white		Appelez-nous	-
20	316040807		Grate,black ,(4)		Appelez-nous	-
43	316544013		Knob,control ,white		Appelez-nous	-
46	318077411		Burner Box		Appelez-nous	-
47	318144006		Cord,service		Appelez-nous	-
99	5304474369		Nut,palnut ,(3)		Appelez-nous	-
100	5303325982		Nut,keps ,10-32		Appelez-nous	-
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
183	5304410665		Screw,10-32 X 5/8 ,(8)		Appelez-nous	-
45A	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
NI	5303324191		Washer,flat		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
