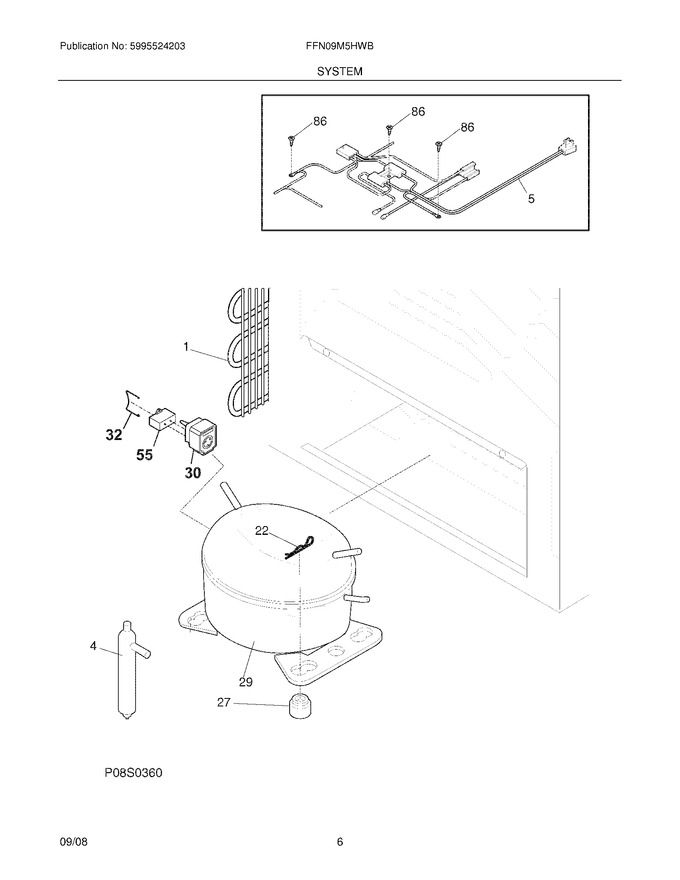

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954235 | Controller (Replaces: 297237700) |
|
Immediately | $ 87.21 | ||||
| 32 | 297030500 | Clip,controller |
|
Immediately | $ 12.05 | ||||
| 55 | 297286812 | Capacitor,run ,12 Mf (Replaces: 216985002) |
|
Immediately | $ 11.78 | ||||
| 86 | 216707701 | Screw,8-18 X 1/2 |
|
- | |||||
| F1 | 5300120781 | Condenser |
|
- | |||||
| F29 | 5304507765 | Compressor,w/o Electricals (Replaces: 297237300) |
|
Immediately | $ 677.23 | ||||
| F5 | 297251401 | Harness-main |
|
- | |||||
| NI | 216707801 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- |
