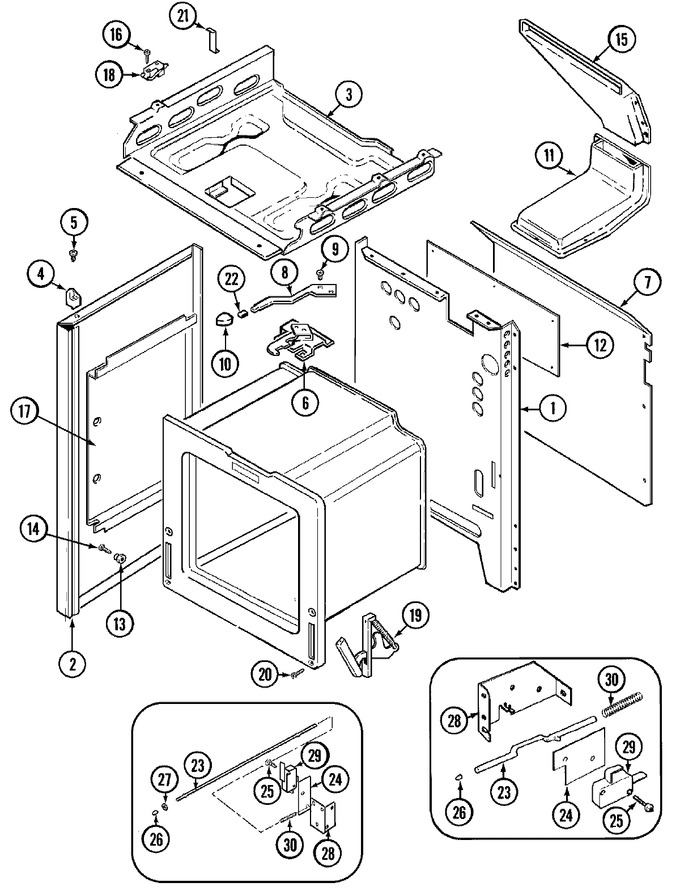

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Door/drawer (serial Prefix 15)
05 - Gas Controls
06 - Oven/base
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8008P021-60 | Grommet, Snap | 10 |
|
- | ||||
| 1 | 4002F188-80 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F110-70 | Panel, Side (blk) | 10 |
|
- | ||||
| 3 | 4011F223-80 | Box, Burner | 10 |
|
- | ||||
| 3 | 4011F250-80 | Box, Burner | 12 |
|
- | ||||
| 4 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 4 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 5 | 7101P313-60 | Screw (8abx3/8-zn) | 10 |
|
- | ||||
| 6 | 4804F028-60 | Insulation, Latch Assy. | 10 |
|
- | ||||
| 6 | 8002P024-60 | Latch Assy. | 10 |
|
- | ||||
| 7 | 4005F331-51 | Cover, Main Back Wire | 10 |
|
- | ||||
| 8 | 8009P015-60 | Lever Lock | 10 |
|
- | ||||
| 8 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 8 | 8009P029-60 | Lever, Latch Assy. | 12 |
|
- | ||||
| 9 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 10 |
|
$ 4.29 | ||||
| 10 | 7701P088-60 | Handle, Latch (blk) | 10 |
|
- | ||||
| 11 | 4006W113-45 | Box, Vent | 10 |
|
- | ||||
| 12 | 3604F165-51 | Shield, Flue (lower) | 10 |
|
- | ||||
| 13 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 14 | W11772394 | Screw (Replaces: 7101P300-60) | 10 |
|
Immediately | $ 10.94 | |||
| 15 | W11772394 | Screw (Replaces: 7101P277-60) | 10 |
|
Immediately | $ 10.94 | |||
| 15 | 4022W005-19 | Extension, Flue Box | 10 |
|
- | ||||
| 15 | 7109P028-60 | Washer | 10 |
|
- | ||||
| 16 | 7101P330-60 | Screw, Switch | 12 |
|
- | ||||
| 16 | 7101P130-60 | Screw, Latch Switch | 10 |
|
- | ||||
| 17 | 3804F103-51 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 18 | 7003P063-60 | Insulator, Door Lock Switch | 12 |
|
- | ||||
| 18 | 7403P363-60 | Switch, Door Latch | 10 |
|
- | ||||
| 18 | 3801F267-45 | Bracket, Switch | 10 |
|
- | ||||
| 18 | 7403P361-60 | Switch, Door Latch | 12 |
|
- | ||||
| 19 | 7106P056-60 | Hinge | 10 |
|
- | ||||
| 20 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 10 |
|
$ 4.29 | ||||
| 21 | 3807F431-45 | Support, Main Top | 10 |
|
- | ||||
| 22 | 7112P003-60 | Clip, Latch Handle | 10 |
|
- | ||||
| 23 | 7809P022-60 | Rod, Light Switch | 10 |
|
- | ||||
| 23 | 74001630 | Rod, Door Light Switch | 11 |
|
- | ||||
| 24 | 74001626 | Insulator, Door Switch | 11 |
|
- | ||||
| 24 | 7003P062-60 | Insulator, Switch | 10 |
|
- | ||||
| 25 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 26 | 8003P012-60 | Bumper | 10 |
|
- | ||||
| 26 | 74001631 | Bumper, Rod | 11 |
|
$ 5.22 | ||||
| 27 | 7109P020-60 | Washer | 10 |
|
- | ||||
| 28 | 74001632 | Bracket, Switch Actuator | 11 |
|
- | ||||
| 28 | 3801F354-51 | Bracket, Light Switch | 10 |
|
- | ||||
| 29 | 7403P357-60 | Switch, Door Light | 10 |
|
- | ||||
| 29 | 74001628 | Switch, Door Light | 11 |
|
- | ||||
| 30 | 74001629 | Spring, Door Switch | 11 |
|
$ 15.03 | ||||
| 30 | 7803P067-60 | Spring | 10 |
|
- |
