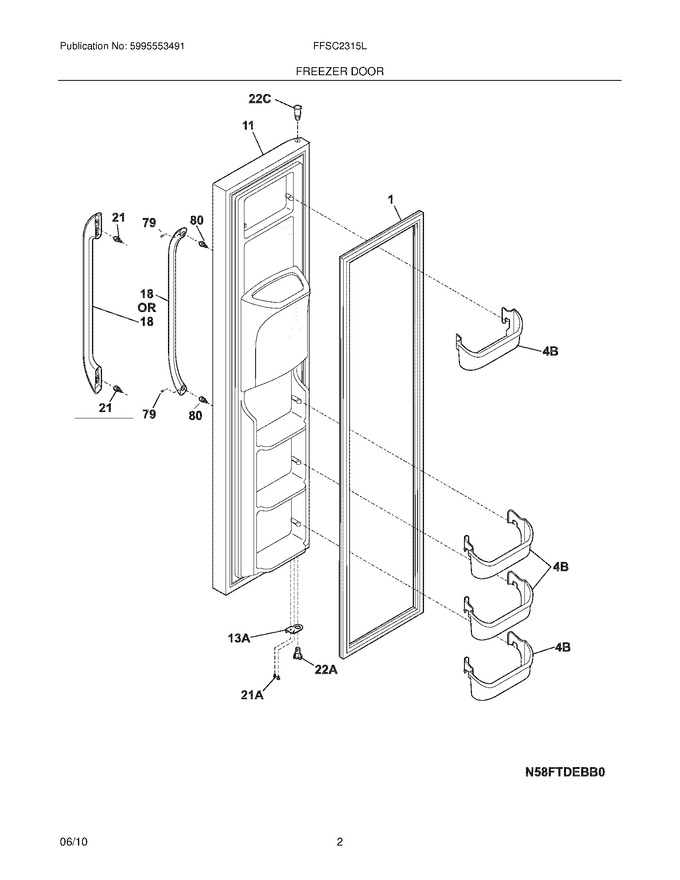

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241993823		Door-frzr,stainless ,complete Assy		Appelez-nous	-
18	242059301		Handle-door,stainless				$ 219.03
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240581906		Door Stop,black ,frzr				$ 73.00
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22A	242000502		Bearing-hinge,black ,lower				$ 7.18
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
4B	241511601		Bin-door				$ 42.44
F1	241510208		Gasket-frzr Door,black ,magnetic   (Replaces: 241510204)			Immediately	$ 94.95
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	240411502		Clip-dispenser Cover		Appelez-nous	-
NI	242059901		Harness-wiring,door		Appelez-nous	-
NI	240451503		Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe				$ 3.79
NI	5303918256		Dispenser Heater Kit				$ 474.16
