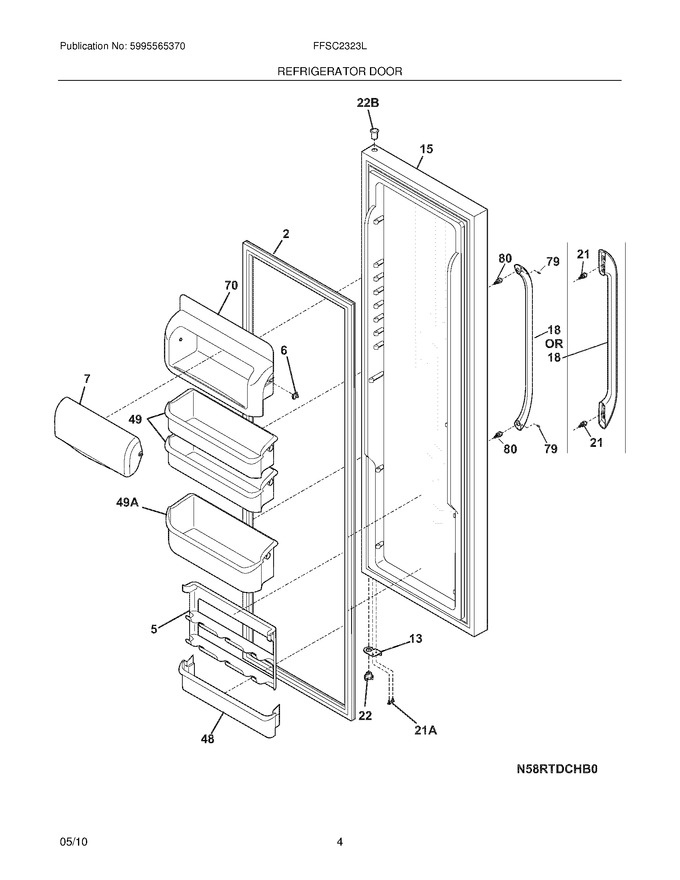

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516101		Rack-can				$ 73.40
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
13	241942603		Door Stop,black ,ref				$ 20.56
15	241837279		Door-refr,white ,complete Assy		Appelez-nous	-
18	242059101		Handle-door,white				$ 125.89
21	241695904		Screw				$ 14.41
22	241990301		Bearing-hinge,gray				$ 7.09
48	241511706		Bin-door,ref				$ 72.18
49	241505306		Bin-door,2-liter				$ 72.18
70	241515801		Compartment-dairy,removable				$ 177.89
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760403		Bearing,hinge ,top			Immediately	$ 19.13
49A	241505506		Bin-door				$ 89.85
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
