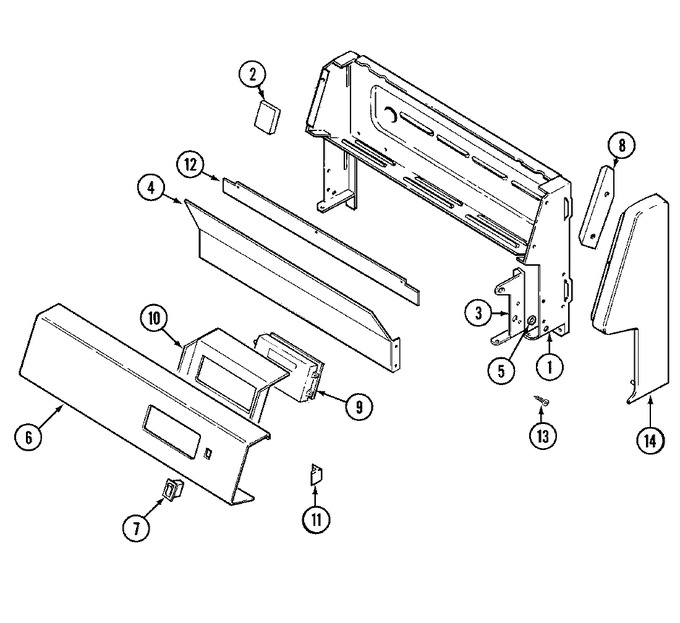

02 - Control Panel
03 - Door/drawer
04 - Door/drawer (serial Prefix 16)
05 - Gas Controls
06 - Oven/base
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F091-51 | Housing, Control Panel | 10 |
|
- | ||||
| 1 | 4005F448-45 | Cover, Wire | 10 |
|
- | ||||
| 2 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 3 | 3807F453-60 | Support, Main Top (rt) | 10 |
|
- | ||||
| 3 | 3807F454-60 | Support, Left | 10 |
|
- | ||||
| 4 | 3604F188-09 | Shield, Flue | 10 |
|
- | ||||
| 5 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 6 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 6 | 7703P549-60 | Panel, Control | 10 |
|
- | ||||
| 7 | 7403P309-60 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 8 | 3807F450-45 | Support, Control Pnl (lt) | 10 |
|
- | ||||
| 8 | 3807F449-45 | Support, Control Pnl (rt) | 10 |
|
- | ||||
| 9 | 74001316 | Clock (blk) | 10 |
|
- | ||||
| 10 | 74001488 | Bracket, Clock | 10 |
|
- | ||||
| 11 | 8010P083-60 | Spacer | 10 |
|
- | ||||
| 12 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 13 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 7726P064-60 | End Cap (lt-chr) | 10 |
|
- | ||||
| 14 | 7726P063-60 | End Cap (rt-chr) | 10 |
|
- | ||||
| NI | 5170P204-60 | Harness, Sensor & Lock | 10 |
|
- | ||||
| NI | 5180D152-60 | Harness, Control Panel | 10 |
|
- | ||||
| NI | 5125A355-60 | Wires, Loose | 10 |
|
- | ||||
| NI | 74001181 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
