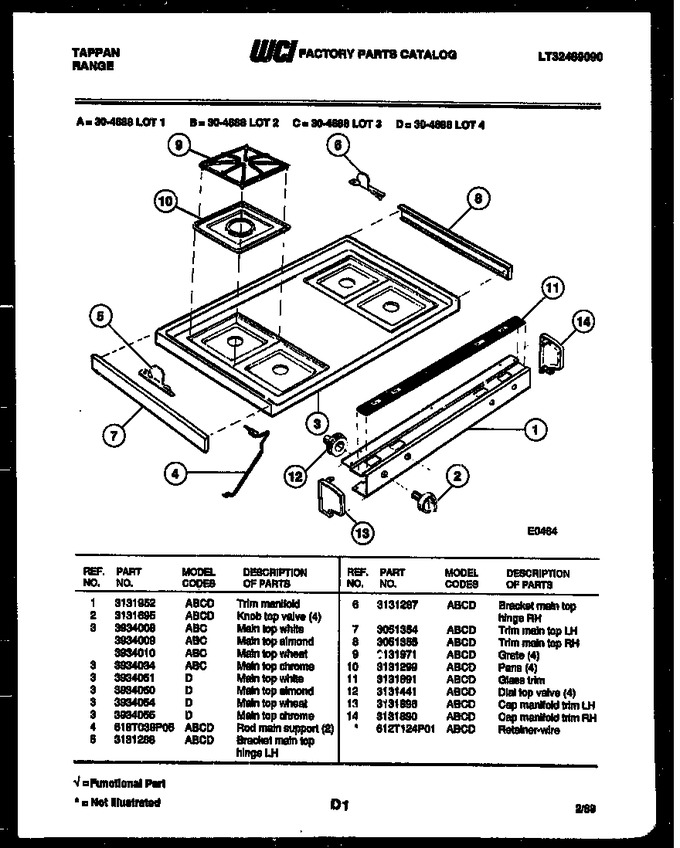

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131952 | Trim-manifold |
|
- | |||||
| 2 | 3131695 | Knob-top Valve (4) |
|
- | |||||
| 3 | 3934009 | Main Top-almond |
|
- | |||||
| 4 | 618T038P05 | Rod-main Support (2) |
|
- | |||||
| 5 | 3131286 | Bracket, Main Top Hinge (lh) |
|
- | |||||
| 6 | 3131287 | Bracket, Main Top Hinge (rh) |
|
- | |||||
| 7 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| 8 | 3051355 | Trim, Main Top (rh) |
|
- | |||||
| 9 | 3131971 | Grate (4) |
|
- | |||||
| 10 | 3131299 | Pans (4) |
|
- | |||||
| 11 | 3131891 | Glass Trim |
|
- | |||||
| 12 | 3131441 | Dial-top Valve\(4) |
|
- | |||||
| 13 | 3131896 | Cap Manifold Trim Lh |
|
- | |||||
| 14 | 3131890 | Cap Manifold Trim Rh |
|
- | |||||
| *12523 | 612T124P01 | Retainer - Wire |
|
- |
