SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

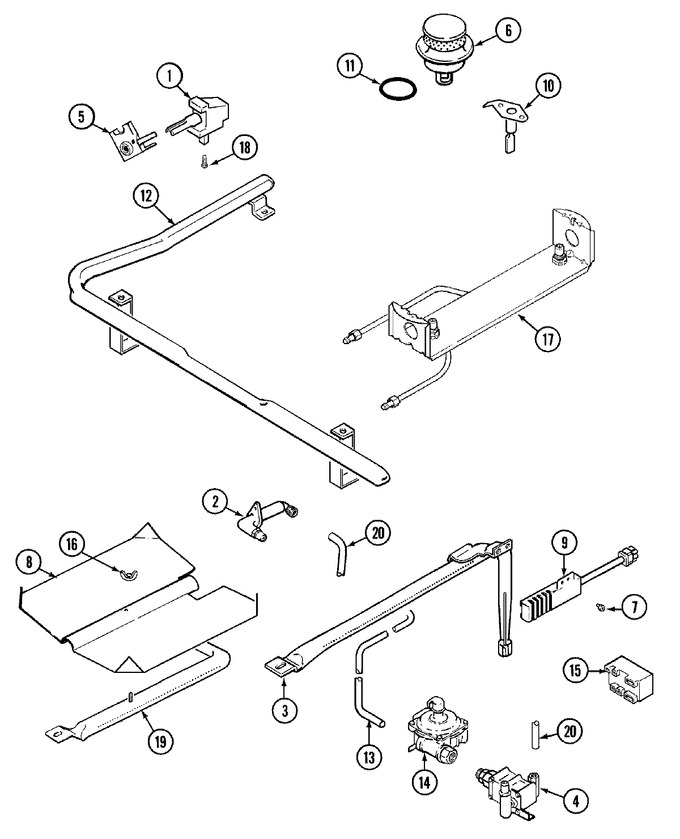

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P252-60 | Valve, Burner | 10 |
|
- | ||||
| 2 | 3605F186-45 | Plate, Fitting | 10 |
|
- | ||||
| 2 | 7507P088-60 | Fitting, Broil Burner | 10 |
|
- | ||||
| 3 | 3403D043-45 | Burner, Bake | 10 |
|
- | ||||
| 3 | 3807F446-45 | Support, Burner | 10 |
|
- | ||||
| 4 | 74001442 | Valve, Oven | 10 |
|
- | ||||
| 5 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 10 |
|
$ 130.75 | ||||
| 6 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 10 |
|
Immediately | $ 92.69 | |||
| 7 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 8 | 3601F217-45 | Baffle, Broil | 10 |
|
- | ||||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 10 |
|
Immediately | $ 60.44 | |||
| 9 | 4005F421-45 | Cover,igniter | 10 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.6) | 10 |
|
- | ||||
| 11 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 10 |
|
Immediately | $ 92.69 | |||
| 12 | 7513P156-60 | Pipe, Manifold | 10 |
|
- | ||||
| 13 | 3414F103-44 | Tubing, Regulator/pipe (3/8``) | 10 |
|
- | ||||
| 13 | 7103P121-60 | Loxit Nut | 10 |
|
- | ||||
| 13 | 1555258K | 3/8`` Nut & Ferrule | 10 |
|
- | ||||
| 14 | 7510P068-60 | Regulator, Pressure | 10 |
|
- | ||||
| 15 | 74003264 | Module, Spark | 23 |
|
- | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74001934 | Module, Spark | 10 |
|
- | ||||
| 16 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 17 | 74002601 | Fitting Assy., Orifice (rt) | 10 |
|
- | ||||
| 17 | 74002600 | Fitting Assy., Orifice (lt) | 10 |
|
- | ||||
| 18 | 7101P044-60 | Screw, Valve | 10 |
|
- | ||||
| 19 | 3403D024-45 | Burner, Broil | 10 |
|
- | ||||
| 20 | 1555258K | 3/8`` Nut & Ferrule | 10 |
|
- | ||||
| 20 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 20 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 10 |
|
- | ||||
| NI | W10124350 | Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit) | 10 |
|
- | ||||
| NI | 5120D019-60 | Harness, Spark Module/top | 10 |
|
- | ||||
| NI | 5140D035-60 | Wires, Igniter | 10 |
|
- | ||||
| NI | 5125A357-60 | Wires, Igniter Switch(3bk/3tn) | 10 |
|
- |
