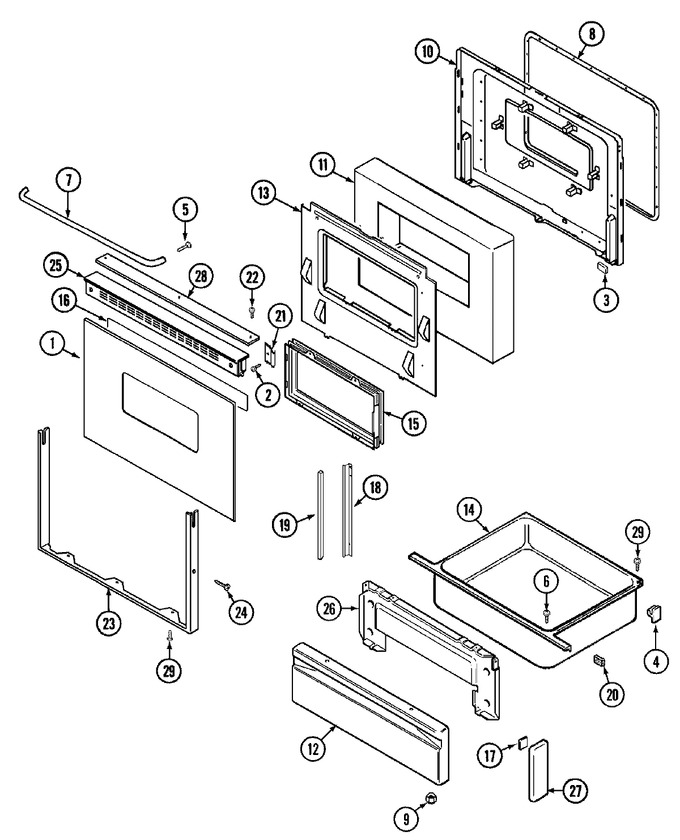

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P360-60		Glass, Door (wht)	10	Appelez-nous	-
2	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	8004P026-60		Support, Drawer (rear)	10			$ 9.29
5	7101P326-60		Screw	10	Appelez-nous	-
6	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
7	7701P150-60		Handle, Oven Door (wht)	10	Appelez-nous	-
8	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
9	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	10			$ 4.00
10	2402W202-19		Lining, Door	10	Appelez-nous	-
10	7103P136-60		Nut, Snap	11	Appelez-nous	-
10	2402W209-19		Lining, Door	11	Appelez-nous	-
10	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	11			$ 9.89
10	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	11			$ 9.89
11	4804F051-60		Insulation, Door	10	Appelez-nous	-
12	2416W002-71		Panel, Drawer (wht)	10	Appelez-nous	-
13	7103P045-60		Nut, Nylon	10	Appelez-nous	-
13	3601F236-47		Baffle, Door	10	Appelez-nous	-
14	3405F018-80		Drawer, Storage	10	Appelez-nous	-
15	7907P021-60		Window Asy.	10	Appelez-nous	-
16	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
17	8270P098-60		Tape	10			$ 5.02
18	3818F052-51		Channel, Air	10	Appelez-nous	-
19	7208P002-60		Seal	10	Appelez-nous	-
20	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
21	3805F002-34		Clamp, Window Assy.	10	Appelez-nous	-
22	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	11			$ 11.89
22	74001278		Screw (wht)	11			$ 5.83
22	WP98008544		Screw (wht)   (Replaces: 7101P308-60)	10			$ 11.89
23	7706P298-60		Frame, Door (wht)	10	Appelez-nous	-
23	7706P310-60		Frame, Door (wht)	11	Appelez-nous	-
24	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	11			$ 11.89
25	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 7.69
25	7706P306-60		Trim, Door (upper-wht)	11	Appelez-nous	-
25	7744P115-60		Trim (wht)	10	Appelez-nous	-
25	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
26	74001464		Lining, Drawer----na	10	Appelez-nous	-
27	7744P090-60		End Cap, Drawer (wht)	10	Appelez-nous	-
28	7728P094-60		Insert, Door Trim (wht)	11			$ 82.40
29	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
