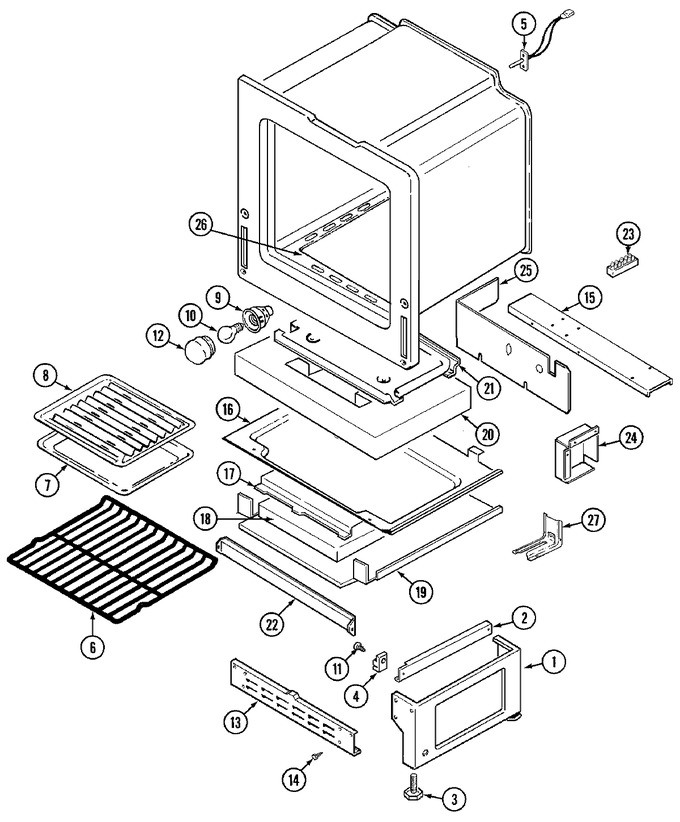

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001705 | Pedestal (sides) | 10 |
|
- | ||||
| 1 | 74003003 | Pedestal, Side | 18 |
|
- | ||||
| 2 | 3406F028-51 | Runner, Drawer | 10 |
|
- | ||||
| 3 | 74001311 | Leg, Leveling | 10 |
|
- | ||||
| 3 | W11665456 | Leg, Leveling (Replaces: 74002373) | 18 |
|
Immediately | $ 25.30 | |||
| 4 | 8004P033-60 | Support, Drawer | 10 |
|
- | ||||
| 5 | 12001655 | Probe, Sensor (Replaces: Y04000051) | 10 |
|
Immediately | $ 41.01 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
$ 65.15 | ||||
| 7 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 8 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 9 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 66.10 | |||
| 9 | 74003125 | Receptacle, Bulb | 25 |
|
- | ||||
| 10 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 10 |
|
Immediately | $ 1.98 | |||
| 11 | 7101P103-60 | Screw | 10 |
|
- | ||||
| 12 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 10 |
|
Immediately | $ 71.93 | |||
| 13 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 3807F447-51 | Support, Valve & Regulator | 10 |
|
- | ||||
| 16 | 3804F112-51 | Retainer, Insulation | 10 |
|
- | ||||
| 17 | 3604F204-51 | Shield, Heat | 10 |
|
- | ||||
| 18 | 7002P140-60 | Insulation, Drawer & Shield | 10 |
|
- | ||||
| 19 | 3604F205-51 | Shield, Drawer | 10 |
|
- | ||||
| 20 | 4804F014-60 | Insulation, Oven Bottom | 10 |
|
- | ||||
| 21 | 74001651 | Pan, Bake Burner | 10 |
|
- | ||||
| 22 | 74001219 | Baffle, Oven Front | 10 |
|
- | ||||
| 23 | 7401P037-60 | Block, Terminal | 10 |
|
- | ||||
| 24 | 3807F473-51 | Support, Spark Module | 10 |
|
- | ||||
| 25 | 4005F429-51 | Cover, Valve | 10 |
|
- | ||||
| 26 | 5504M004-19 | Bottom, Oven Assy. | 10 |
|
- | ||||
| 27 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 27 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 |
