01 - Body
02 - Door/drawer
03 - Gas Controls
04 - Oven/base
05 - Top Assembly/control Panel
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

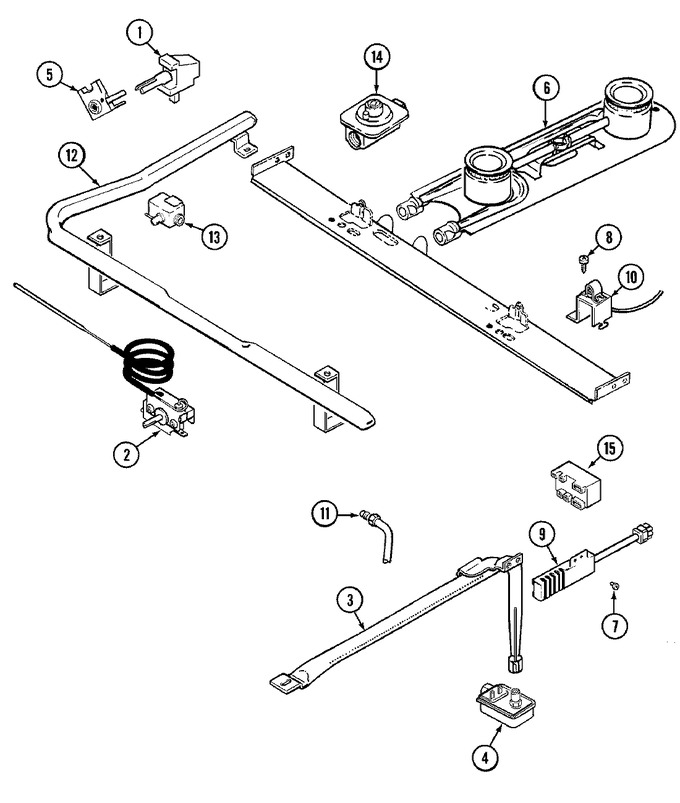

| 1 | 7502P174-60 | Valve, Top Burner | 15 |
|
- | ||||
| 1 | 7101P044-60 | Screw, Valve | 15 |
|
- | ||||
| 2 | 7101P280-60 | Screw W/washer (blk) | 15 |
|
- | ||||
| 2 | 7404P087-60 | Thermostat | 15 |
|
$ 197.47 | ||||
| 2 | 3604F177-51 | Shield, Thermostat | 15 |
|
- | ||||
| 3 | 3403D023-45 | Burner, Oven | 15 |
|
- | ||||
| 4 | 7501P144-60 | Valve, Oven | 15 |
|
- | ||||
| 4 | 4005F433-51 | Cover, Valve | 15 |
|
- | ||||
| 5 | 7403P284-60 | Switch, Burner | 15 |
|
$ 55.80 | ||||
| 6 | 3412A004-19 | Burner, Top | 15 |
|
- | ||||
| 7 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 15 |
|
$ 4.29 | ||||
| 8 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 15 |
|
Immediately | $ 12.62 | |||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 15 |
|
Immediately | $ 60.44 | |||
| 10 | 7432P008-60 | Igniter, Top (lt) | 15 |
|
- | ||||
| 10 | 7432P031-60 | Igniter, Top (rt) | 15 |
|
- | ||||
| 11 | 3414F114-44 | Tubing | 15 |
|
- | ||||
| 11 | 1555251 | Nut, Loxit (3/8``) | 15 |
|
- | ||||
| 12 | 7513P159-60 | Pipe, Manifold | 15 |
|
- | ||||
| 12 | 7103P130-60 | Nut, Loxit (3/8``) | 15 |
|
$ 8.20 | ||||
| 13 | 7502P002-60 | Valve, Shut Off | 15 |
|
- | ||||
| 14 | 7510P049-60 | Regulator, Pressure | 15 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 15 |
|
Immediately | $ 12.62 | |||
| 15 | 7431P006-60 | Module, Spark | 15 |
|
- | ||||
| 15 | 3807F432-45 | Support, Spark Module | 15 |
|
- | ||||
| NI | 5195D078-60 | Harness, Burner Box | 15 |
|
- | ||||
| NI | 5125A312-60 | Harness, Loose/burner Box | 15 |
|
- |
