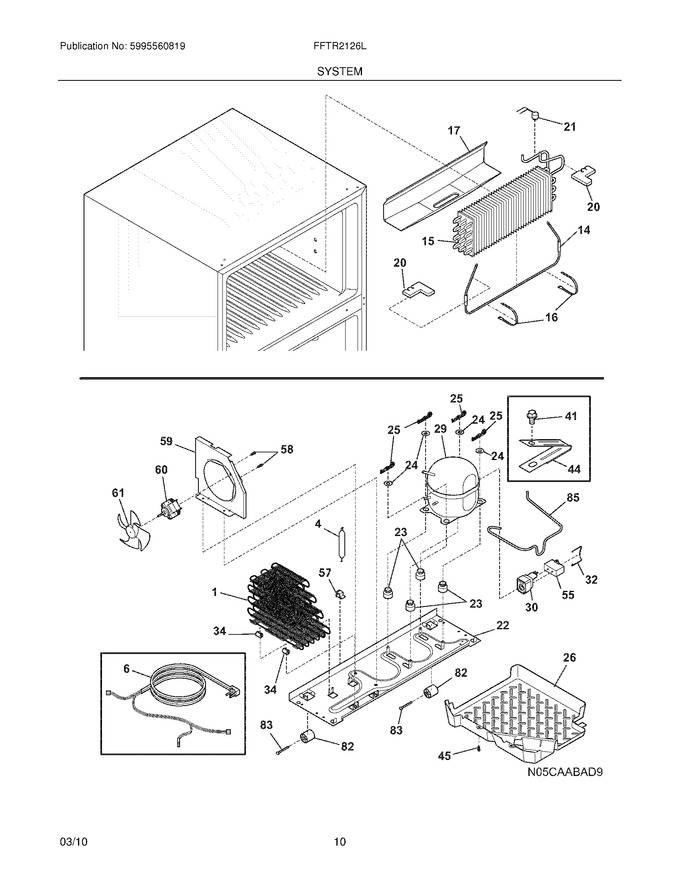

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 17 | 241801301 | Trough-drain |
|
$ 64.46 | |||||
| 20 | 241551902 | Insulation Block |
|
$ 11.34 | |||||
| 22 | 241665504 | Base-compressor |
|
$ 80.09 | |||||
| 23 | 218513300 | Grommet,compressor (Replaces: 241659701) |
|
$ 42.53 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037701 | Clip-compressor Mtg |
|
$ 2.84 | |||||
| 26 | 241697603 | Pan-defrost (Replaces: 241637401) |
|
$ 79.22 | |||||
| 30 | 241707705 | Starter-ptc |
|
$ 60.25 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 17.01 | |||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 41 | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 215174700 | Clamp, Service Cord, Strain Relief |
|
- | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 , |
|
$ 14.18 | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909913) |
|
Immediately | $ 35.38 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240555002 | Screw,hex Washer Head ,8-32 X 0.375 (Replaces: 218897002) |
|
Immediately | $ 13.46 | ||||
| 59 | 241935604 | Shroud,cond Fan Motor |
|
- | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 , |
|
Immediately | $ 35.34 | ||||
| 85 | 241844501 | Tube-connector,suction |
|
$ 38.14 | |||||
| F1 | 242098001 | Condenser |
|
- | |||||
| F14 | 242044021 | Heater-defrost |
|
$ 109.15 | |||||
| F15 | 5303918274 | Evaporator Kit (Replaces: 5303918431) |
|
Immediately | $ 423.67 | ||||
| F21 | 5303918202 | Thermostat-defrost,kit |
|
Immediately | $ 20.21 | ||||
| F29 | 5304507765 | Compressor Kit (Replaces: 5303918352) |
|
Immediately | $ 677.23 | ||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 31.67 | ||||
| F6 | 241872701 | Harness-wiring,machine Compt (Replaces: 241607001) |
|
$ 122.62 | |||||
| F60 | 241696606 | Motor-condenser Fan (Replaces: 241696605) |
|
Immediately | $ 183.81 | ||||
| F61 | 240524102 | Fan Blade,condenser Fan |
|
Immediately | $ 39.43 | ||||
| FNI | 5303918330 | Heat Exchanger Kit,suction Line , |
|
$ 335.10 | |||||
| FNI | 5304421289 | Hot Tube Repair Kit,service |
|
$ 537.60 | |||||
| FNI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 240359403 | Screw-fan Shroud,(2) |
|
$ 3.79 | |||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 29.77 | |||||
| NI | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 19.13 |
