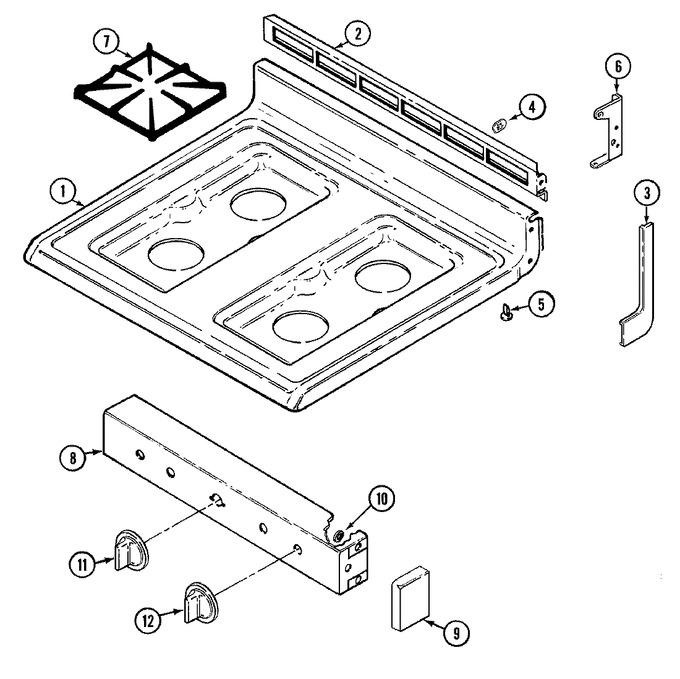

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W086-84 | Top, Main (alm) | 15 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 15 |
|
- | ||||
| 2 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 15 |
|
$ 11.92 | ||||
| 3 | 7746P030-60 | End Cap (rt-blk) | 15 |
|
$ 26.16 | ||||
| 3 | 7746P031-60 | End Cap (lt-blk) | 15 |
|
$ 26.25 | ||||
| 4 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 15 |
|
$ 7.68 | ||||
| 5 | 8016P013-60 | Glide | 15 |
|
- | ||||
| 6 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 15 |
|
Immediately | $ 12.62 | |||
| 6 | 3418D098-60 | Hinge, Main Top (rt) | 15 |
|
- | ||||
| 6 | 3418D097-60 | Hinge, Main Top (lt) | 15 |
|
- | ||||
| 7 | 2003W027-00 | Grate (blk) | 15 |
|
- | ||||
| 8 | 2616F102-09 | Panel, Manifold (blk) | 15 |
|
- | ||||
| 8 | 7101P329-60 | Screw | 15 |
|
- | ||||
| 9 | 7713P018-60 | End Cap, Panel (blk) | 15 |
|
- | ||||
| 10 | 7112P092-60 | Clip, Spring Grip | 15 |
|
- | ||||
| 11 | 7731P095-60 | Knob, Thermostat | 15 |
|
- | ||||
| 12 | WP7711P135-60 | Knob, Valve (Replaces: 7733P057-60) | 15 |
|
$ 25.06 |
