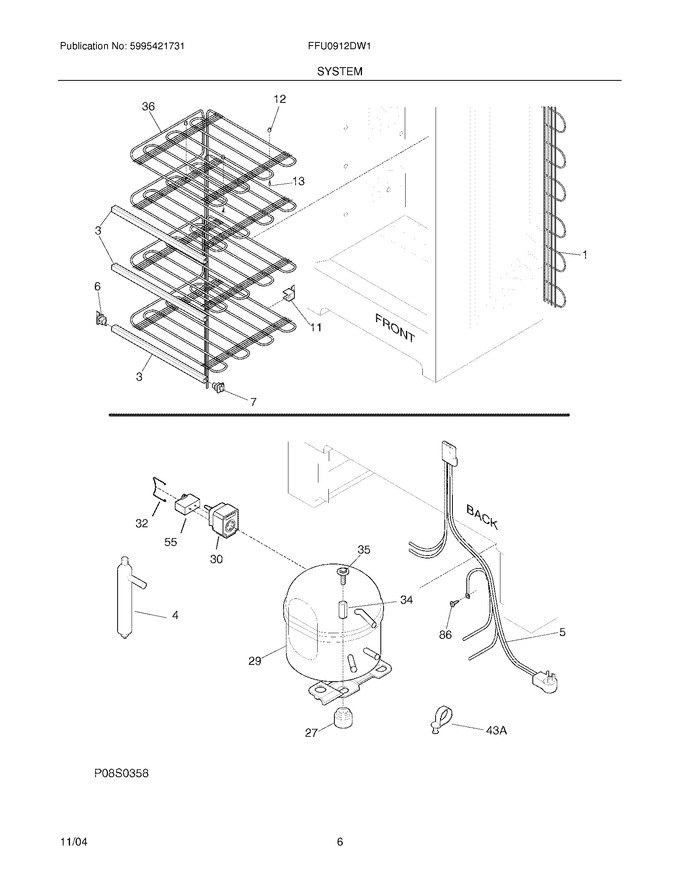

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216847802		Trim-shelf,white ,evap				$ 36.12
6	297001600		Support-shelf,front Lh				$ 18.08
7	297001500		Support-shelf,front Rh				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216649314		Controller				$ 141.28
32	216649200		Clip,controller				$ 6.30
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
15A	216404900		Heat Exchanger				$ 264.23
43A	216629700		Clip		Appelez-nous	-
F1	5303304537		Condenser		Appelez-nous	-
F29	216944500		Compressor,w/o Electricals				$ 448.46
F36	216940200		Evaporator,tubing Assy ,white				$ 256.48
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216793400		Harness-ext,main		Appelez-nous	-
F55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 74.75
NI	216502500		Sleeve,suction Line				$ 10.85
