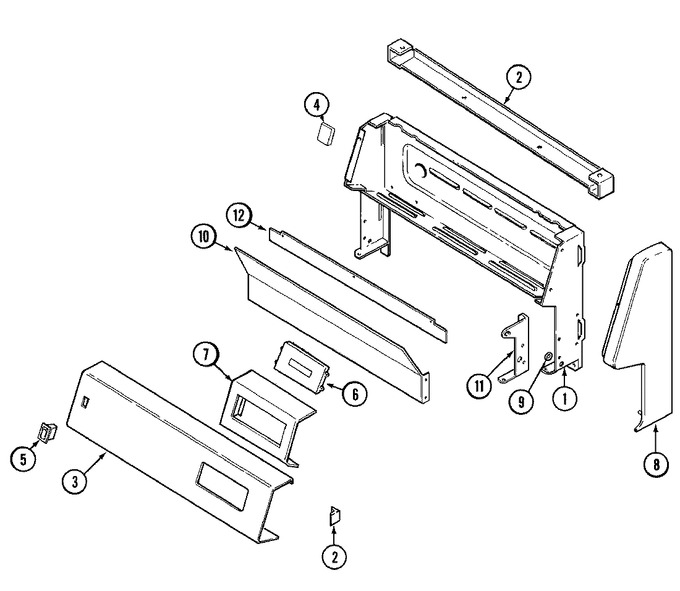

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F091-51 | Housing, Control Panel | 15 |
|
- | ||||
| 2 | 4001F064-51 | Extension, Control Panel | 15 |
|
- | ||||
| 3 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 15 |
|
Immediately | $ 6.47 | |||
| 3 | 7703P632-60 | Panel, Control | 15 |
|
- | ||||
| 4 | 8010P085-60 | Spacer, Rubber | 15 |
|
- | ||||
| 5 | 7403P067-60 | Switch, Rocker (blk) | 15 |
|
$ 91.35 | ||||
| 6 | 7602P118-60 | Clock (blk) | 15 |
|
- | ||||
| 6 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 15 |
|
$ 6.98 | ||||
| 7 | W11233072 | Screw (Replaces: 7101P331-60) | 15 |
|
Immediately | $ 12.62 | |||
| 7 | 3801F340-45 | Bracket, Clock | 15 |
|
- | ||||
| 8 | 7726P060-60 | End Cap (rt-blk) | 15 |
|
- | ||||
| 8 | 7726P059-60 | End Cap (lt-blk) | 15 |
|
- | ||||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 15 |
|
Immediately | $ 12.62 | |||
| 9 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 15 |
|
$ 7.68 | ||||
| 10 | 3604F188-09 | Shield, Flue | 15 |
|
- | ||||
| 11 | 3418D098-60 | Hinge, Main Top (rt) | 15 |
|
- | ||||
| 11 | 3418D097-60 | Hinge, Main Top (lt) | 15 |
|
- | ||||
| 12 | 8036P003-60 | Shield, Sight | 15 |
|
- | ||||
| NI | 5185D250-60 | Harness, Supply | 15 |
|
- | ||||
| NI | 5180D138-60 | Harness, Control Panel | 15 |
|
- | ||||
| NI | 8113P042-60 | Manual, Use & Care | 15 |
|
- | ||||
| NI | 16002079 | Guide, Quick Ref - Admiral | 15 |
|
- |
