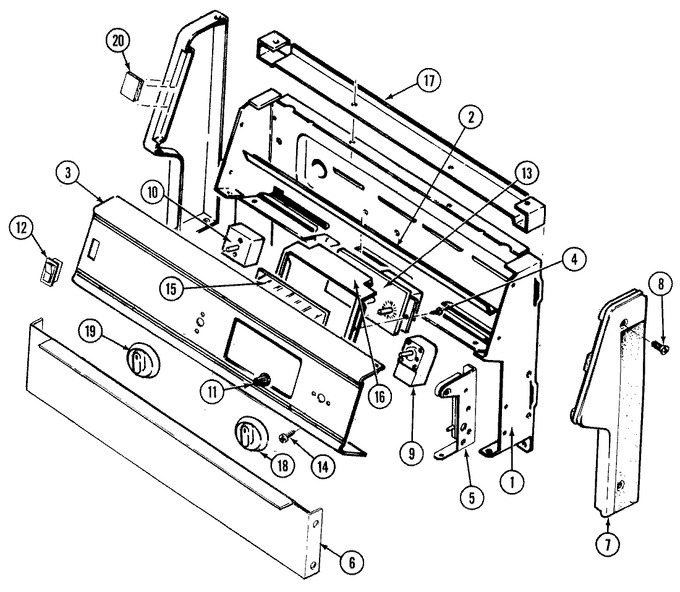

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F448-45		Cover, Wire	10	Appelez-nous	-
1	4001F091-51		Housing, Control Panel	10	Appelez-nous	-
2	8036P003-60		Shield, Sight	10	Appelez-nous	-
3	7703P325-60		Panel, Control	10	Appelez-nous	-
4	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
5	3418D098-60		Hinge, Main Top (rt)	10	Appelez-nous	-
5	3418D097-60		Hinge, Main Top (lt)	10	Appelez-nous	-
6	3604F188-09		Shield, Flue	10	Appelez-nous	-
7	7726P059-60		End Cap (lt-blk)	10	Appelez-nous	-
7	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	10			$ 7.68
7	7726P060-60		End Cap (rt-blk)	10	Appelez-nous	-
8	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
9	7404P102-60		Thermostat	10	Appelez-nous	-
10	7403P236-60		Switch, Selector	10	Appelez-nous	-
11	7711P466-60		Knob, Clock	10			$ 14.72
12	7403P067-60		Switch, Rocker (blk)	10			$ 91.35
13	7601P170-60		Clock	10	Appelez-nous	-
14	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
15	7201P056-60		Gasket	10	Appelez-nous	-
15	7902P109-60		Glass, Clock	10	Appelez-nous	-
16	3801F264-45		Bracket, Clock	10	Appelez-nous	-
17	4001F064-51		Extension, Control Panel	10	Appelez-nous	-
18	7731P080-60		Knob, Thermostat	10	Appelez-nous	-
19	7739P049-60		Knob, Selector	10	Appelez-nous	-
20	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
NI	5180D155-60		Harness, Wire Backguard	10	Appelez-nous	-
NI	5125A363-60		Wires, Loose	10	Appelez-nous	-
NI	8113P044-60		Manual, Use & Care	10	Appelez-nous	-
NI	8113P038-60		Insert, Instruction Sheet	10	Appelez-nous	-
