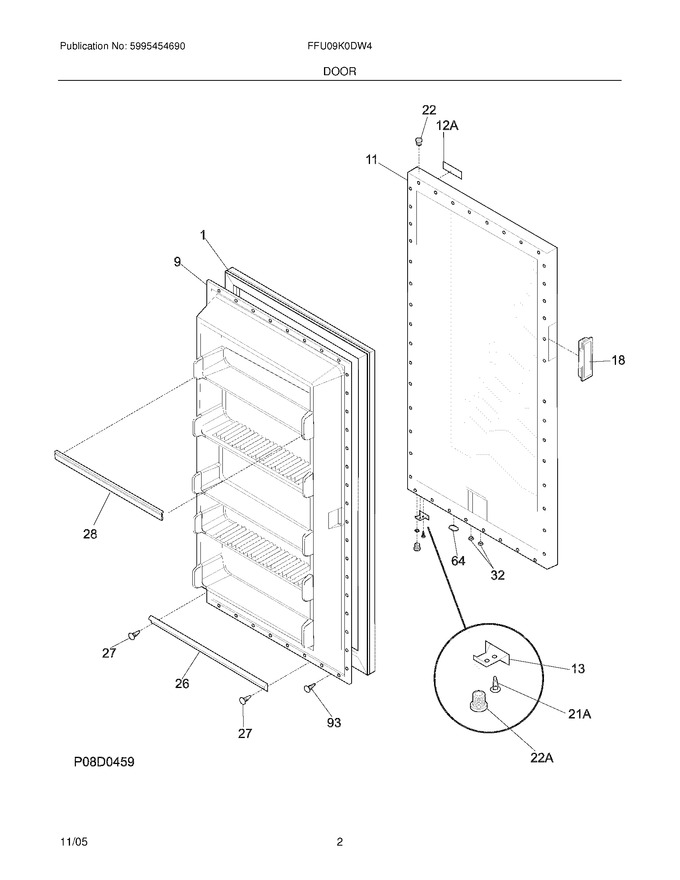

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507203		Gasket-door   (Replaces: 216522300)				$ 182.71
9	216527206		Panel-inner Door,frzr				$ 155.03
11	216564206		Panel-outer Door,white				$ 200.90
13	08016354		Door Stop				$ 36.07
18	297034200		Handle,recessed ,white ,incl/gasket				$ 13.00
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524400		Gasket-secondary		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
28	216951602		Rack-shelf,(4)		Appelez-nous	-
32	5309950074		Valve,breather ,door Base				$ 12.48
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
12A	216892800		Nameplate		Appelez-nous	-
21A	08005520		Screw,door Stop Mtg ,4.0 X 0.7-19.7 ,flat Hd,metric		Appelez-nous	-
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
