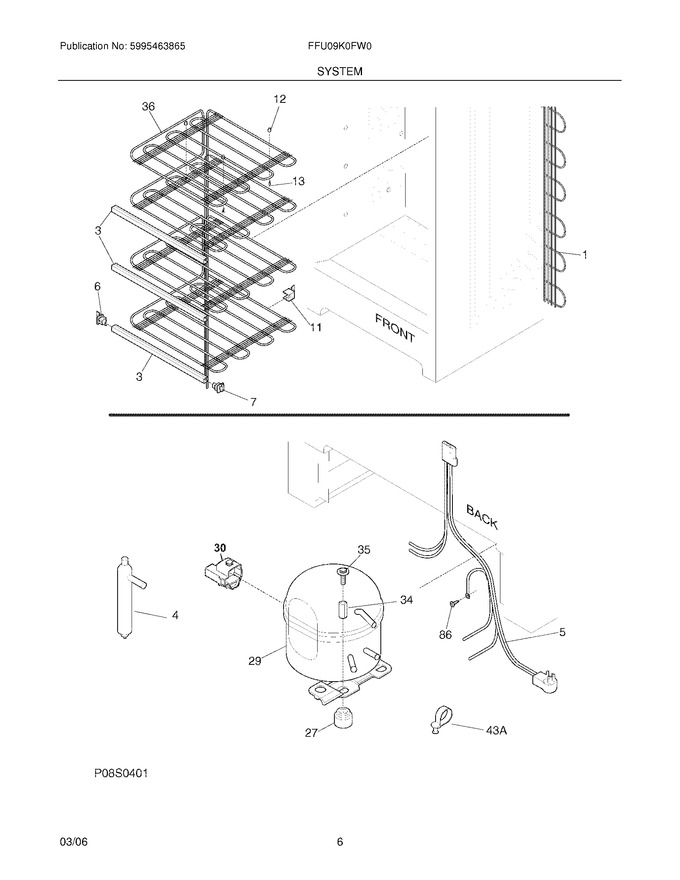

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216847802 | Trim-shelf,white ,evap ,(3) |
|
$ 36.12 | |||||
| 6 | 297001600 | Support-shelf,front Lh ,(3) |
|
$ 18.08 | |||||
| 7 | 297001500 | Support-shelf,front Rh ,(3) |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf,(6) |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138900 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
$ 3.31 | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 86 | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| 43A | 216629700 | Clip |
|
- | |||||
| F1 | 5303304537 | Condenser |
|
- | |||||
| F29 | 5304507765 | Compressor,assy ,w/electricals (Replaces: 297054400) |
|
Immediately | $ 677.23 | ||||
| F30 | 5304499966 | Relay Combo (Replaces: 297054500) |
|
$ 79.52 | |||||
| F36 | 216940200 | Evaporator,tubing Assy ,white |
|
$ 256.48 | |||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 31.67 | ||||
| F5 | 216987100 | Harness-main |
|
$ 143.98 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 |
