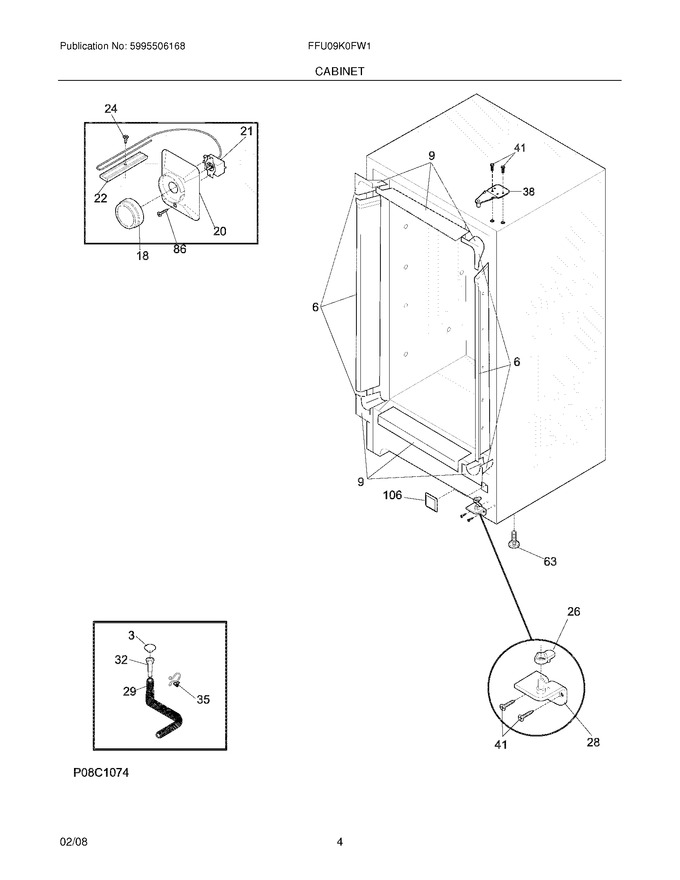

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
6	216604500		Breaker,hinge Side				$ 69.05
9	216603500		Breaker,top		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
20	297013800		Cover-control Housing				$ 80.43
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	297132700		Hinge,bottom ,rh				$ 47.87
29	5304512272		Hose-drain   (Replaces: 216313503)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Drain Hose				$ 22.42
38	216939100		Hinge-upper				$ 59.54
41	216936801		Screw-hinge,12-24x.700 Hwh				$ 11.87
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
106	216926301		Plug,square		Appelez-nous	-
F21	216834500		Control-temperature				$ 24.31
NI	216794707		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
