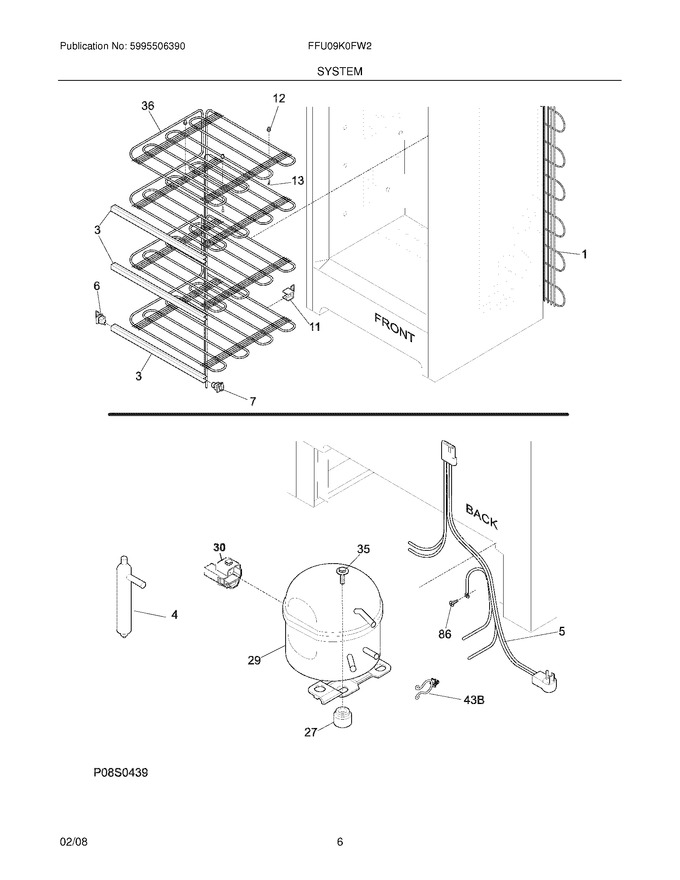

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303304537 | Condenser |
|
- | |||||
| 3 | 216847802 | Trim-shelf,white ,evap ,(3) |
|
$ 36.12 | |||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 5 | 216987100 | Harness-main |
|
$ 143.98 | |||||
| 6 | 297001600 | Support-shelf,front Lh |
|
$ 18.08 | |||||
| 7 | 297001500 | Support-shelf,front Rh |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 29 | 5304507765 | Compressor,assy ,w/electricals (Replaces: 297054400) |
|
Immediately | $ 677.23 | ||||
| 30 | 5304499966 | Relay Combo (Replaces: 297054500) |
|
$ 79.52 | |||||
| 35 | 297177200 | Bolt,compressor ,(4) |
|
- | |||||
| 36 | 216940200 | Evaporator,tubing Assy ,white |
|
$ 256.48 | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 43B | 297315800 | Clip (Replaces: 297048400) |
|
$ 10.13 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 |
