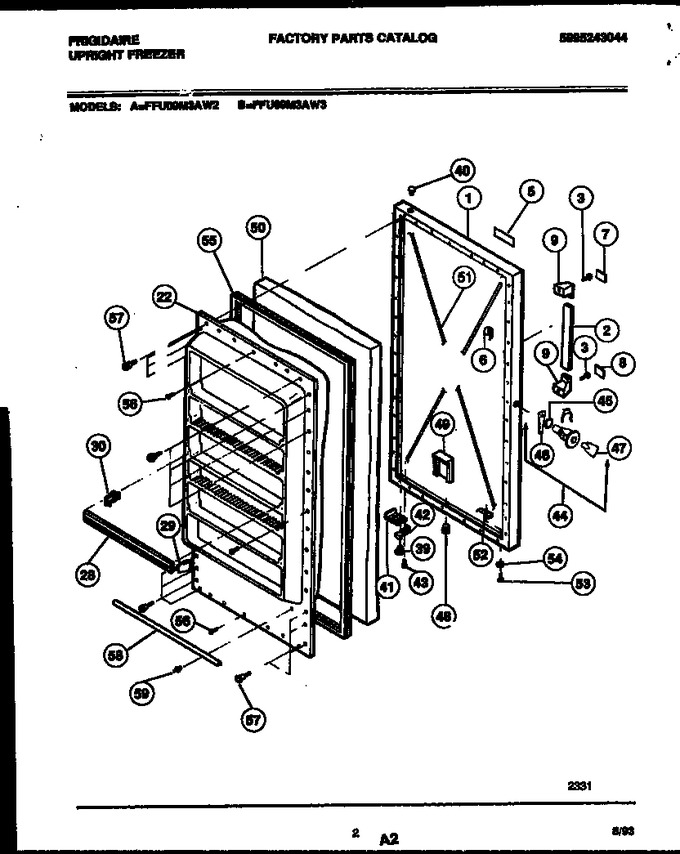

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011209		Panel-door-white		Appelez-nous	-
2	216087700		Handle, Door-white		Appelez-nous	-
3	5300050149		Screw, Handle		Appelez-nous	-
5	215008601		Nameplate		Appelez-nous	-
6	3202683		Anchor, Screw		Appelez-nous	-
7	216208900		Insert, Top		Appelez-nous	-
8	216209000		Insert-bottom		Appelez-nous	-
9	216209800		End Cap-white (2)				$ 47.25
22	216048426		Panel-inner-white		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	216156600		Shelf Front Narrow (4)		Appelez-nous	-
29	5309948967		End Cap-rh Narrow (4)		Appelez-nous	-
30	5309948968		End Cap-lh Narrow (4)		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5303297490		Bearing, Top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216013800		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5303212700		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037981		Wire Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206236		Gasket Door				$ 239.56
56	216858001		Screw, Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw, Panel (24)		Appelez-nous	-
58	5308016356		Gasket-white		Appelez-nous	-
59	5303212828		Clip, Gasket (5)				$ 16.63
*84585	216156800		Front-wide (1)		Appelez-nous	-
*84585	5309948970		End Cap-rh Wide (1)		Appelez-nous	-
*84585	09948971		End Cap-lh		Appelez-nous	-
