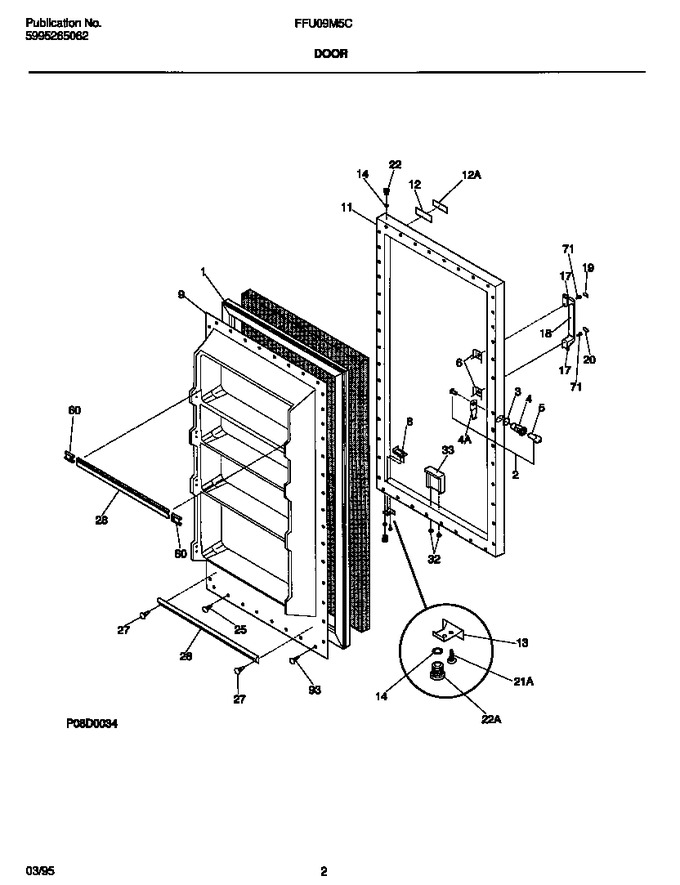

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206236		Gasket Door				$ 239.56
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
4	216330800		Hook, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
6	3202683		Nut-anchor, Door Hdl Screw		Appelez-nous	-
8	5300091170		Reinforcement, Door Stop		Appelez-nous	-
9	216048614		Panel-inner Door, White		Appelez-nous	-
11	5303925208		Panel-outer Door, White		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	216315100		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303301500		Washer, Sealing		Appelez-nous	-
17	216209800		End Cap, White				$ 47.25
18	216087700		Handle, White		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209000		Insert-handle,bottom		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303210403		Bearing		Appelez-nous	-
22	5303925197		Bearing				$ 23.73
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	5303300817		Gasket-secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216370800		Rack-shelf, Wide, White		Appelez-nous	-
29	216340000		End Cap, White-rh		Appelez-nous	-
30	216340100		End Cap, White-lh		Appelez-nous	-
32	5309950074		Breather-air Duct, Door				$ 12.48
33	5303212700		Air Duct		Appelez-nous	-
51	5303286877		Wire Adjusting		Appelez-nous	-
71	5303161214		Screw, 8 18 X 3/4 (2)		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*49000	5303917276		Insulation				$ 330.91
