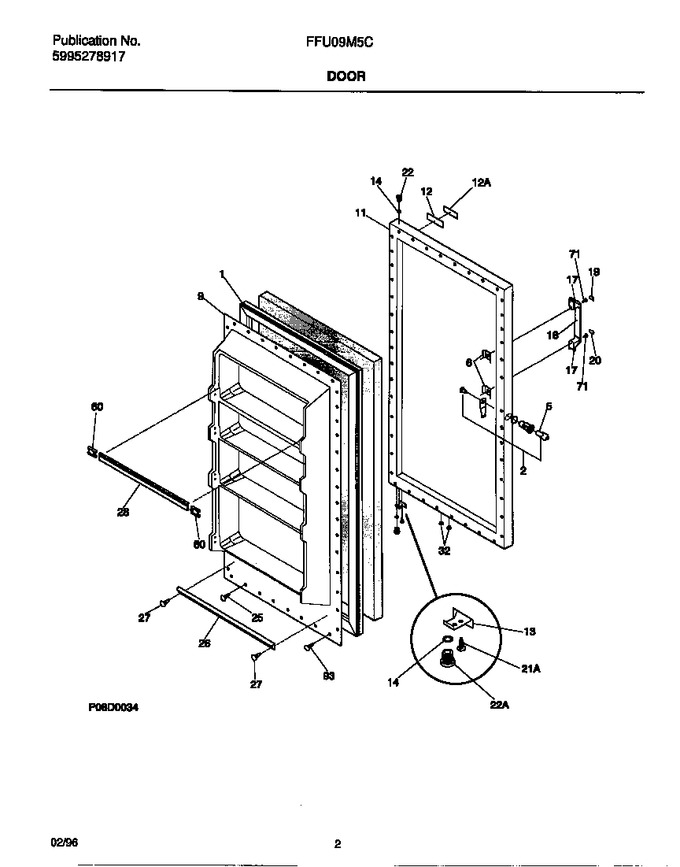

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206236		Gasket Door				$ 239.56
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
6	218990001		Screw-anchor,8-18   (Replaces: 5300158222)				$ 16.30
9	216048430		Panel-inner Lid, White		Appelez-nous	-
11	5303925394		Panel-outer Door Assy, W/foam Insul, White		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	216315100		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
17	216209800		End Cap, White				$ 47.25
18	216087700		Handle, White		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209000		Insert-handle,bottom		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303210403		Bearing		Appelez-nous	-
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	08009385		Gasket Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216274100		Rack-shelf, Narrow, White		Appelez-nous	-
32	5309950074		Breather-air Duct, Door				$ 12.48
60	5303298264		Support-rack, Lh-rh		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*79360	5303917276		Insulation				$ 330.91
