View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body

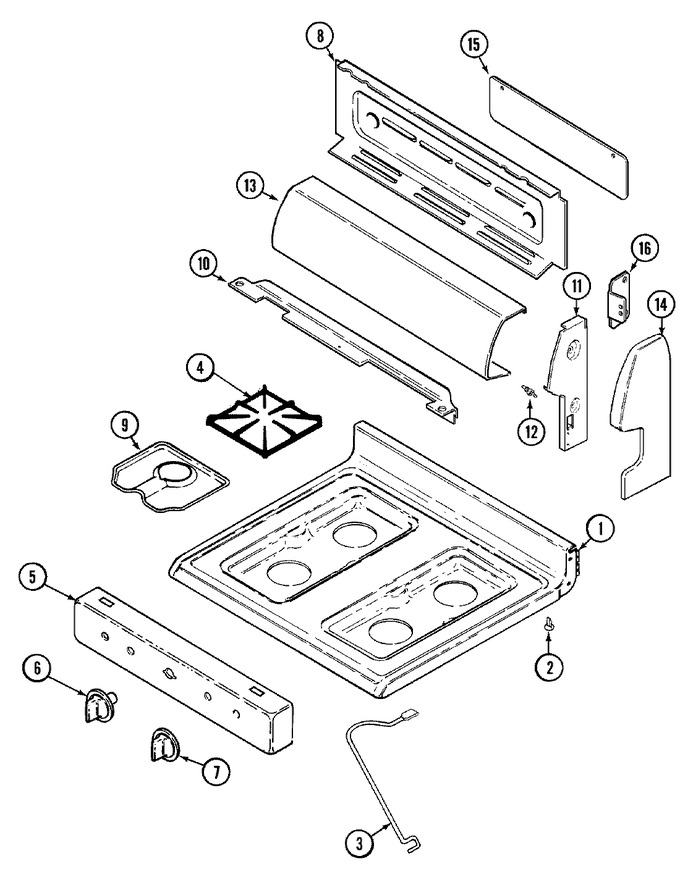

02 - Control Panel/top Assembly
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002410 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 3 | 74001170 | Support, Top | 10 |
|
- | ||||
| 4 | 2003W027-00 | Grate (blk) | 10 |
|
- | ||||
| 4 | 74001059 | Grate (blk) | 13 |
|
- | ||||
| 5 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 5 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 5 | 74002411 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | WP74002419 | Knob, Thermostat (blk) (Replaces: 74002419) | 10 |
|
$ 18.54 | ||||
| 7 | WP74002353 | Knob, Valve (blk) (Replaces: 74002353) | 10 |
|
$ 18.29 | ||||
| 8 | 74002450 | Housing, Control Panel | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 10 |
|
$ 95.86 | ||||
| 10 | 74002401 | Shield, Vent Deflector | 10 |
|
- | ||||
| 10 | 74002409 | Clip, Spacer | 10 |
|
- | ||||
| 11 | 74002403 | Bracket, Panel (rt) | 10 |
|
- | ||||
| 11 | 74002402 | Bracket, Panel (lt) | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74002404 | Pin, Main Top Hinge | 10 |
|
- | ||||
| 13 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 13 | 74002964 | Panel, Control (blk) | 10 |
|
- | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 74003868 | Panel, Control (blk) | 15 |
|
- | ||||
| 14 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74002636 | End Cap, Panel (rt-blk) | 10 |
|
- | ||||
| 14 | 74002637 | End Cap, Panel (lt-blk) | 10 |
|
- | ||||
| 15 | 74002448 | Shield, Vent | 10 |
|
- | ||||
| 16 | 74002639 | Shield, Control | 10 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| NI | 74002355 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
