SELECT A DIAGRAM

01 - Body


02 - Control Panel/top Assembly


03 - Door/drawer


04 - Gas Controls


05 - Oven/base

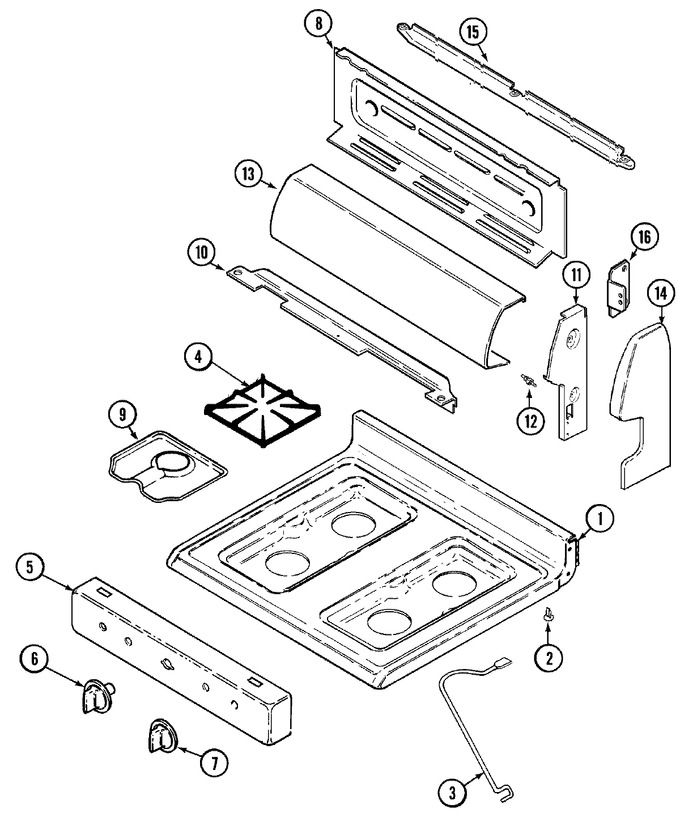

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005049		Top, Main (bsq)	10	Appelez-nous	-
2	8016P015-60		Glide	10			$ 5.65
3	74004084		Prop Rod	10	Appelez-nous	-
4	74001059		Grate (blk)	10	Appelez-nous	-
5	WPW10068250		Screw   (Replaces: 7101P074-60)	10			$ 3.66
5	74002411		Panel, Manifold (blk)	10	Appelez-nous	-
5	7109P015-60		Washer	10	Appelez-nous	-
6	WP74002419		Knob, Thermostat (blk)   (Replaces: 74002419)	10			$ 18.54
7	WP74002353		Knob, Valve (blk)   (Replaces: 74002353)	10			$ 18.29
8	74002450		Housing, Control Panel	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	1430283		Drip Bowl Kit (accessory)   (Replaces: 5401A433-60)	10			$ 95.86
10	74005047		Shield, Vent Deflector	10	Appelez-nous	-
11	W10828565		Screw, Black   (Replaces: 7101P270-60)	10			$ 6.70
11	74002403		Bracket, Panel (rt)	10	Appelez-nous	-
11	74002402		Bracket, Panel (lt)	10	Appelez-nous	-
12	74002404		Pin, Main Top Hinge	10	Appelez-nous	-
13	74003868		Panel, Control (blk)	10	Appelez-nous	-
14	74002636		End Cap, Panel (rt-blk)	10	Appelez-nous	-
14	74002637		End Cap, Panel (lt-blk)	10	Appelez-nous	-
14	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	10		Immediately	$ 6.47
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	74003828		Extension, Vent Deflector	10	Appelez-nous	-
16	74002639		Shield, Control	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
NI	16010161		Manual, Srvc Elec/gas Range	10	Appelez-nous	-
NI	12001323		Wire/terminal Kit	10	Appelez-nous	-
NI	74004367		Manual, Use & Care	10	Appelez-nous	-
NI	16008701		Manual, Use & Care (frch)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
